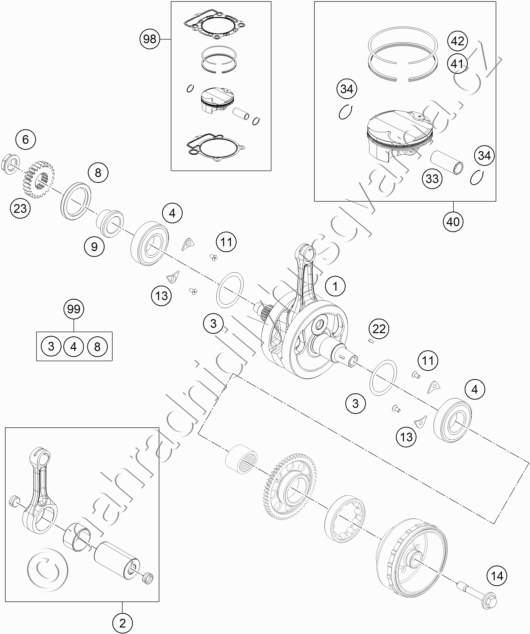

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77530018200 CRANKSHAFT CPL. |
23 703 Kč | |
| 2 | 77830015044 CONNECTING ROD REPAIR SET |
8 317 Kč | |
| 3 | 0988324510 THRUST WASHER 988ST 32X0,1 |
15 Kč | |
| 3 | 0988324515 THRUST WASHER 988ST 32X0,15 |
15 Kč | |
| 3 | 0988324530 THRUST WASHER 988ST 32X0,30 |
15 Kč | |
| 4 | 77330082200 BEARING NJ 206 ECP/HN3C4HVA624 |
1 006 Kč | |
| 6 | 77230029000 NUT PRIMARY WHEEL |
738 Kč | |
| 8 | 0760405560 SHAFT SEAL RING A40x55x6 VITON |
206 Kč | |
| 9 | 77232022000 SPACER BUSHING PRIMARY GEAR |
570 Kč | |
| 11 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 13 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 14 | 77339010100 FLYWHEEL SCREW |
87 Kč | |
| 22 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
| 23 | 77232023024 PRIMARY GEAR 24T. |
1 642 Kč | |
| 33 | 77230133000 PISTON PIN 350 |
910 Kč | |
| 34 | 77230174000 CIRCLIP |
47 Kč | |
| 40 | 77530107100 I PISTON I CPL. 350 |
7 473 Kč | |
| 40 | 77530107100 II PISTON II CPL. 350 |
7 473 Kč | |
| 41 | 79230232000 OIL SCRAPER RING |
1 306 Kč | |
| 42 | 77230030000 COMPRESSIONRING 350 |
977 Kč | |
| 98 | 77530007010 I PISTON KIT GR. I 350 EXC-F 14 |
7 473 Kč | |
| 98 | 77530007010 II PISTON KIT GR. II 350 EXC-F 14 |
7 473 Kč | |
| 99 | 00050002317 CRANKSHAFT REP.KIT 250/350EXCF |
2 074 Kč |
