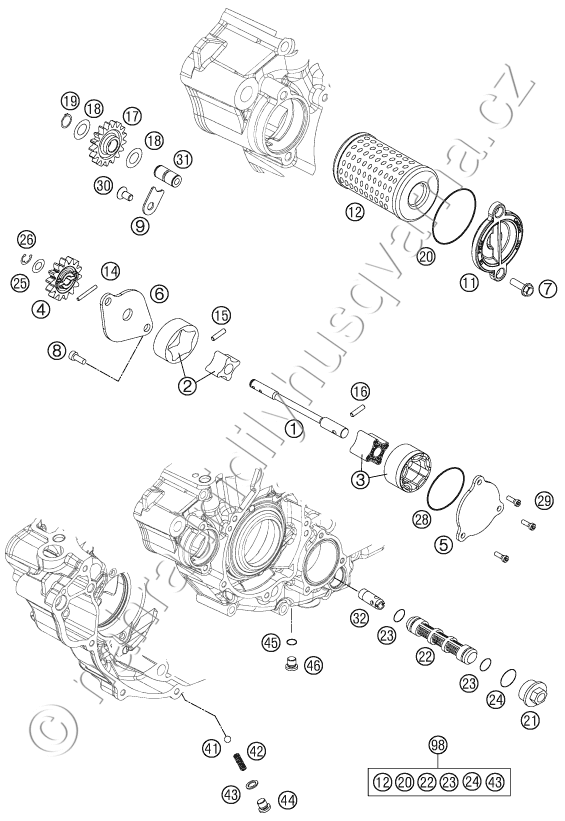

Díly pro LUBRICATING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77238102000 OIL PUMP SHAFT |
558 Kč | |
| 2 | 59038011112 OILPUMP ROTOR-SET 12MM CPL. |
708 Kč | |
| 3 | 61238111000 ROTOR-SET CPL. 22MM |
1 041 Kč | |
| 4 | 77038001100 OIL PUMP GEAR 14T 08 |
86 Kč | |
| 5 | 78038004000 OIL PUMP COVER SUCTION PUMP |
456 Kč | |
| 6 | 77238003100 OIL PUMP COVER R/S |
196 Kč | |
| 7 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 8 | 0984050123S CYLIND. SCR. DIN6912 M5X12 8.8 |
17 Kč | |
| 9 | 77238061050 AXIAL-CIRCLIP |
42 Kč | |
| 11 | 77338041200 OIL FILTER COVER 08 |
223 Kč | |
| 12 | 77338005100 OIL FILTER |
198 Kč | |
| 14 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 |
20 Kč | |
| 15 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 |
19 Kč | |
| 16 | 0402041580 NEEDLE ROLLER NRB 4X15.8 G2 |
36 Kč | |
| 17 | 77038006100 OILPUMP IDLER GEAR 08 |
127 Kč | |
| 18 | 0988121805 SHIM WASHER DIN0988-12X18X0,50 |
21 Kč | |
| 19 | 0471120010 RETAINING RING DIN 471 12X1 |
4 Kč | |
| 20 | 07703305178 O-RING 33,05X1,78 |
42 Kč | |
| 21 | 59038017100 PLUG M20X1,5 WS=13 |
252 Kč | |
| 22 | 59038016100 OIL SCREEN |
278 Kč | |
| 23 | 07701250151 O-RING 12,5X1,5 VITON V75 |
76 Kč | |
| 24 | 0770020170 O-RING 17,17X1,78 GLO |
18 Kč | |
| 25 | 58038007755 STOP DISK 8,1 X 15 X 0,5 |
21 Kč | |
| 26 | 0799060000 TAB WASHER DIN6799-RS 6,0 |
17 Kč | |
| 28 | 0770440020 O-RING 44,00X2,00 VITON |
50 Kč | |
| 29 | 0984050163S CYL. SCREW DIN6912 M5X16 8.8 |
17 Kč | |
| 30 | 0018050103 INT. TORX OVAL HEAD M 5X10 8.8 |
23 Kč | |
| 31 | 77038013100 BUSHING PIN |
129 Kč | |
| 32 | 77038022000 OIL INTAKEPIPE |
116 Kč | |
| 41 | 0401090003 BALL DIN5401-9 |
33 Kč | |
| 42 | 58038023300 PRESSURE SPRING L=25MM D=1MM |
66 Kč | |
| 43 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 44 | 0908120153 THREADED PLUG DIN 908 M12X1.5 |
87 Kč | |
| 45 | 0770110015 O-RING 1,5x11 SILICON |
57 Kč | |
| 46 | 78036081000 HOLDING BOLT M14X1,5 |
87 Kč | |
| 98 | 00050000083 OILFILTER-GASKET SET 350 SX-F |
419 Kč |
