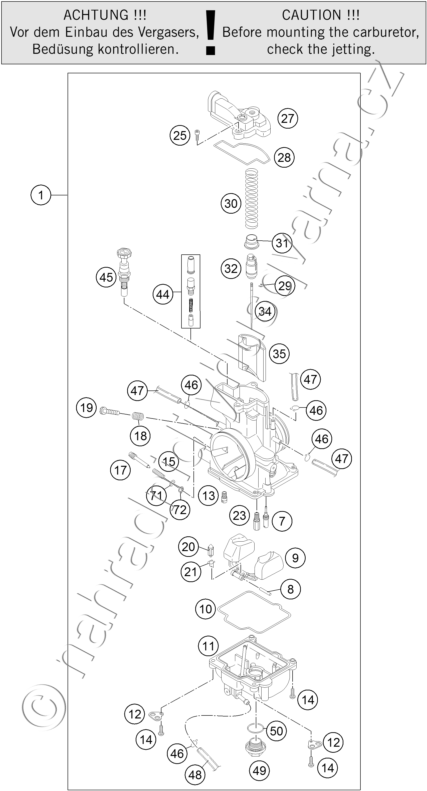

Díly pro CARBURETOR
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54831201544 CARBURET.KEIH.PWK 36S AG BC5 |
9 484 Kč | |
| 7 | 54531607035 IDLE JET 35 KEIHIN |
220 Kč | |
| 7 | 54531607038 IDLE JET 38 KEIHIN |
220 Kč | |
| 7 | 54531607040 IDLE JET 40 KEIHIN |
220 Kč | |
| 7 | 54531607042 IDLE JET 42 KEIHIN |
220 Kč | |
| 7 | 54531607045 IDLE JET 45 KEIHIN |
220 Kč | |
| 7 | 54531607048 IDLE JET 48 KEIHIN |
220 Kč | |
| 7 | 54531607050 IDLE JET 50 KEIHIN |
220 Kč | |
| 7 | 54531607052 IDLE JET 52 KEIHIN |
220 Kč | |
| 7 | 54531607055 IDLE JET 55 KEIHIN |
220 Kč | |
| 7 | 54831007138 IDLE JET SIZE 38X38 KEIHIN |
328 Kč | |
| 8 | 57331008000 ARM PIN FLOAT |
60 Kč | |
| 9 | 57331009000 FLOAT CPL. |
1 189 Kč | |
| 10 | 54831010000 GASKET FLOAT CHAMBER |
166 Kč | |
| 11 | 54831011100 FLOAT CHAMBER PWK38-S AG |
3 904 Kč | |
| 12 | 54531612100 RETAINING PLATE FOR BLEEDER |
63 Kč | |
| 13 | 54831051050 STARTER JET 50 KEIHIN |
222 Kč | |
| 13 | 54831051085 STARTER JET 85 KEIHIN |
222 Kč | |
| 14 | 0016040133 HH COLLAR SCREW M 4X13 WS=6 |
18 Kč | |
| 15 | 54531615000 SPRING FOR ADJUSTMENT SCREW |
57 Kč | |
| 17 | 54531617000 ADJUSTMENT SCREW |
124 Kč | |
| 18 | 54631118000 SPRING |
108 Kč | |
| 19 | 54631219100 ADJUSTMENT SCREW M 5 |
174 Kč | |
| 20 | 54631220000 FLOAT NEEDLE |
475 Kč | |
| 21 | 54531621000 CLAMP |
58 Kč | |
| 23 | 54531623100 MAIN JET GR 100 |
223 Kč | |
| 23 | 54531623140 MAIN JET GR 140 |
223 Kč | |
| 23 | 54531623155 MAIN JET 155 KEIHIN |
246 Kč | |
| 23 | 54531623158 MAIN JET 158 KEIHIN |
246 Kč | |
| 23 | 54531623160 MAIN JET 160 KEIHIN |
246 Kč | |
| 23 | 54531623162 MAIN JET 162 KEIHIN |
246 Kč | |
| 23 | 54531623165 MAIN JET 165 KEIHIN |
246 Kč | |
| 23 | 54531623168 MAIN JET 168 KEIHIN |
246 Kč | |
| 23 | 54531623170 MAIN JET 170 KEIHIN |
246 Kč | |
| 23 | 54531623172 MAIN JET 172 KEIHIN |
246 Kč | |
| 23 | 54531623175 MAIN JET 175 KEIHIN |
246 Kč | |
| 23 | 54531623178 MAIN JET 178 KEIHIN |
246 Kč | |
| 23 | 54531623180 MAIN JET 180 KEIHIN |
246 Kč | |
| 23 | 54531623182 MAIN JET 182 KEIHIN |
246 Kč | |
| 23 | 54531623185 MAIN JET 185 KEIHIN |
246 Kč | |
| 25 | 54831025000 SPECIAL-AH-SCREW M 4X12 |
63 Kč | |
| 27 | 54831127000 CARBURETOR COVER PWK36-S AG |
1 088 Kč | |
| 28 | 54831028000 GASKET FOR CARBURETOR COVER |
129 Kč | |
| 29 | 54531629000 CLIP FOR JET NEEDLE |
47 Kč | |
| 30 | 54831030000 SLIDING SPRING |
191 Kč | |
| 31 | 54631231000 SPRING CAP |
177 Kč | |
| 32 | 54631232000 NIPPLE |
741 Kč | |
| 34 | 54831135000 JET NEEDLE KEIHIN N1EE 06 |
305 Kč | |
| 34 | 54831135100 JET NEEDLE KEIHIN N1EF 06 |
305 Kč | |
| 34 | 54831135200 JET NEEDLE KEIHIN N1EG 06 |
305 Kč | |
| 34 | 54831135300 JET NEEDLE KEIHIN N1EH 06 |
305 Kč | |
| 34 | 54831135400 JET NEEDLE KEIHIN N1ED 06 |
305 Kč | |
| 34 | 54831135600 JET NEEDLE KEIHIN N1EJ 07 |
305 Kč | |
| 34 | 54831135700 JET NEEDLE KEIHIN N1EK 07 |
305 Kč | |
| 35 | 54631035000 THROTTLE VALVE 7 FOR 38 PJ \'00 |
5 496 Kč | |
| 44 | 58502096044 CONNECT. COLD START CABLE CPL. |
310 Kč | |
| 45 | 54631245000 STARTER PISTON CPL. |
1 814 Kč | |
| 46 | 54531696000 CLAMP 6 MM |
36 Kč | |
| 47 | 31007007101 PVC-HOSE 4X6MM |
76 Kč | |
| 48 | 52031137001 PVC-HOSE 3X5MM |
38 Kč | |
| 49 | 54531699000 PLUG M 18X1 |
347 Kč | |
| 50 | 0770180230 O-RING 18,00X2,30 NBR 70 |
45 Kč | |
| 71 | 54831071000 WASHER ADJUSTING SCREW |
47 Kč | |
| 72 | 54831072000 O-RING ADJUSTING SCREW |
47 Kč |
