SULKAR - Oficiální zastoupení Husqvarna

Díly pro CLUTCH COVER

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 79430020033
OIL FILLER CAP M24X3 WITH O-R
89 Kč
2 0770160030
O-RING 16,00X3,00 NBR 70
17 Kč
3 50330626000KA
CLUTCH OUTSIDE COVER \'\'HQV\'\'
1 426 Kč
4 50330027000
CLUTCH OUTS.COVER GASKET 1MM
217 Kč
5 5033000114415
CLUTCH COVER CPL. 125/200 09
3 866 Kč
6 50330025000
CLUTCH COVER GASKET 0,5MM
199 Kč
7 50335052033
WATERPUMP COVER 125/200 98
1 780 Kč
8 0603100141
SEALING RING DIN 7603 10X14X1
27 Kč
9 0910100003
PLUG DIN0910-M 10X1
87 Kč
10 0770191015
O-RING 19,00X3,00 NBR
15 Kč
11 0025060126
HH COLLAR SCREW M6X12 TX30
29 Kč
12 0603061001
CU-SEAL RING DIN7603-6X10X1
20 Kč
13 49030090100
DOWEL 9,8 X7X10
52 Kč
14 0025060356
HH COLLAR SCREW M6X35 TX30
29 Kč
15 0025060406
HH COLLAR SCREW M6X40 TX30
29 Kč
16 0025060506
HH COLLAR SCREW M6X50 TX30
29 Kč
17 0025060306
HH COLLAR SCREW M6X30 TX30
29 Kč

Další schémata

CARBURETOR CARBURETOR CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER, CYLINDER HEAD CYLINDER, CYLINDER HEAD ENGINE CASE ENGINE CASE EXHAUST CONTROL EXHAUST CONTROL IGNITION SYSTEM IGNITION SYSTEM KICK STARTER KICK STARTER REED VALVE CASE REED VALVE CASE SHIFTING MECHANISM SHIFTING MECHANISM TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT

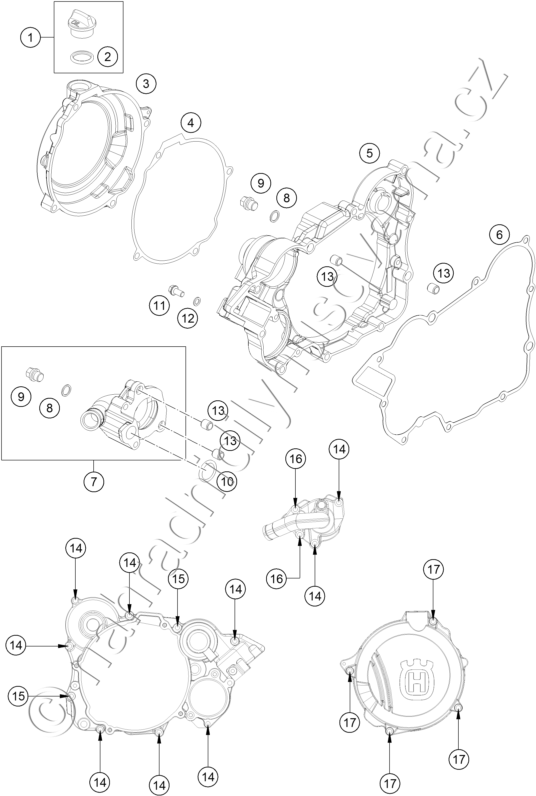

CLUTCH COVER

Zvětšit schéma CLUTCH COVER
CLUTCH COVER
