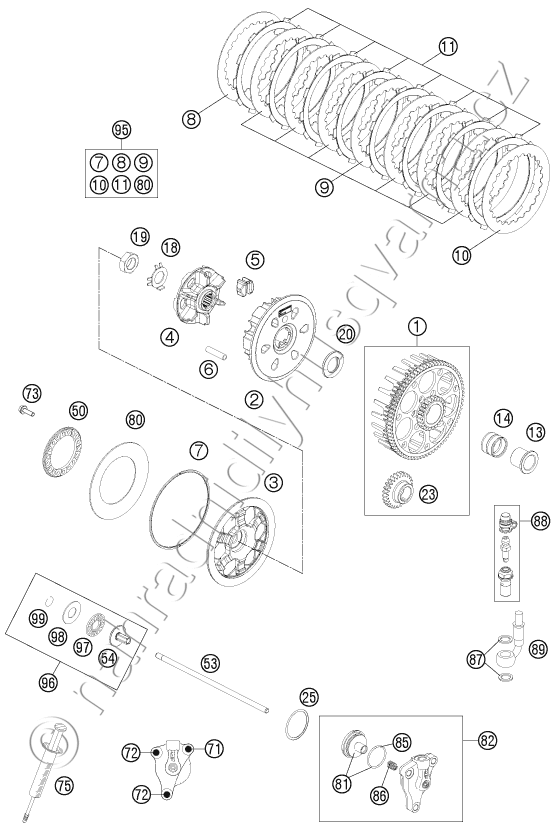

Díly pro CLUTCH
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 54832024044 CLUTCH CAGE INCL. PRIM. WHEEL |
7 324 Kč | |
2 | 78132002300 CLUTCH HUB |
1 791 Kč | |
3 | 78132003100 CLUTCH PRESSURE CAP |
741 Kč | |
4 | 78132002111 HUB |
1 128 Kč | |
5 | 78132025100 DAMPING RUBBER |
50 Kč | |
6 | 78132004000 SLEEVE 7,5X33.4 |
50 Kč | |
7 | 78132013000 WASHER 112X118X1.5 |
158 Kč | |
8 | 59032010100 INTERMEDIATE DISC 1MM 2002 |
146 Kč | |
9 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 |
183 Kč | |
10 | 78932010000 INTERMEDIATE DISC 1MM |
204 Kč | |
11 | 54832011100 LINING DISC 1,95 MM |
441 Kč | |
13 | 54832015100 INNER RING 21.65X26X24.5 |
602 Kč | |
14 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE |
321 Kč | |
18 | 78132018000 TAB WASHER |
45 Kč | |
19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
20 | 54832009000 WASHER 21.7 X 37 X 2.5 |
307 Kč | |
23 | 54832000026 PRIMARY GEAR 26T 2003 |
1 452 Kč | |
25 | 0770300015 O-RING 30,00X1,50 NBR 70 |
33 Kč | |
50 | 54832006000 SPRING RING |
732 Kč | |
53 | 54832054100 PUSH ROD |
191 Kč | |
54 | 78032057000 PRESSURE PIECE |
340 Kč | |
71 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
72 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
73 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
75 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
80 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I |
413 Kč | |
81 | 54832066000 PISTON CPL. |
940 Kč | |
82 | 54832061044 OUTPUT CYLINDER CPL. 06 |
2 251 Kč | |
85 | 54832067000 O-RING |
28 Kč | |
86 | 54832069000 PRESSURE SPRING |
257 Kč | |
87 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
88 | 62513020000 BLEEDER SCREW CPL. 05 |
445 Kč | |
89 | 54832063000 CLUTCH PIPE 06 |
1 761 Kč | |
95 | 54832011110 CLUTCH KIT 250/300 13-15 |
3 760 Kč | |
96 | 78032057044 PRESSURE PIECE CPL. 08 |
512 Kč | |
97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 |
150 Kč | |
98 | 54637098200 AXIAL WASHER AS1226 12X26X1 |
57 Kč | |
99 | 0993012000 CIRCLIP DIN7993-RW12 |
5 Kč |
