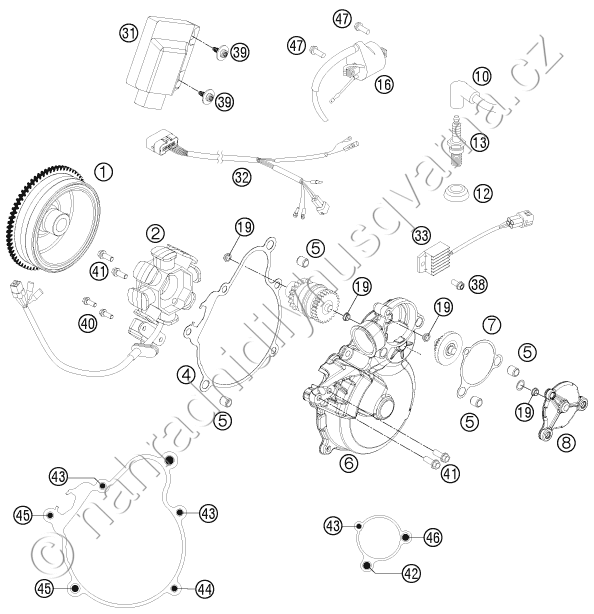

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55139005000 FLYWHEEL KOKUSAN |
7 800 Kč | |
| 2 | 55139004100 STATOR |
4 425 Kč | |
| 4 | 55130040100 GASKET |
257 Kč | |
| 5 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 6 | 5513000234433 IGNITION COVER CPL. |
2 652 Kč | |
| 7 | 55130041100 IGN. OUT SIDE COV. GASKET 07 |
166 Kč | |
| 8 | 5513004524433 OUTER IGNITION COVER CPL. |
714 Kč | |
| 10 | 47039090000 SPARK PLUG CAP NGK REINFORC.04 |
481 Kč | |
| 12 | 50231012000 SEALING CUP FOR SPARK PLUG |
65 Kč | |
| 13 | 54739093000 SPARK PLUG NGK BR7ES |
121 Kč | |
| 16 | 59039006000 IGNITIONCOIL \'\'IG5128\'\' |
934 Kč | |
| 19 | 55140030100 COLLAR BUSHING |
39 Kč | |
| 31 | 54839131900 CDI UNIT 250EXC/XC-W 15 |
6 186 Kč | |
| 32 | 54839032200 WIRING HARNESS FOR CDI 2-ST.07 |
1 294 Kč | |
| 33 | 80011034000 VOLTAGE REGULATOR 04 |
1 678 Kč | |
| 38 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 39 | 0081645121 EJOT DELTA PT SCREW 45X12-Z |
23 Kč | |
| 40 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 |
29 Kč | |
| 41 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 42 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 43 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 44 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 45 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 46 | 0025060706 HH COLLAR SCREW M6X70 TX30 |
29 Kč | |
| 47 | 0026060186 COLLAR SCREW M6X18 ISA30 |
18 Kč |
