Díly pro CLUTCH COVER

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 79230001044
CLUTCH COVER CPL.
3 372 Kč
2 79230025000
CLUTCH COVER GASKET
441 Kč
3 0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
23 Kč
4 0472024120
CIRCLIP DIN0472-24X1.2
17 Kč
5 0760142450
SHAFT SEAL RING 14X24X5 VITON
225 Kč
6 0625062022
BALL BEARING 6202 C0 2
263 Kč
7 07601530451
SHAFT SEAL RING 15X30X4.5 BAUD
94 Kč
8 0472300120
CIRCLIP 30X1,2
18 Kč
9 59030019200
OIL SIGHT GLASS
318 Kč
10 61030019050
CIRCLIP OIL LEVEL GLASS 03
29 Kč
11 79230626000KA
CLUTCH COVER OUTSIDE
1 697 Kč
12 79230027000
CLUTCH COVER GASKET OUTSIDE
159 Kč
13 0770191015
O-RING 19,00X3,00 NBR
15 Kč
14 79430020033
OIL FILLER CAP M24X3 WITH O-R
89 Kč
15 0025060456
HH COLLAR SCREW M6X45 TX30
29 Kč
16 0025060256
HH COLLAR SCREW M6X25 TX30
29 Kč
17 0025060206
HH COLLAR SCREW M6X20 TX30
29 Kč
18 0603061001
CU-SEAL RING DIN7603-6X10X1
20 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE WATER PUMP WATER PUMP

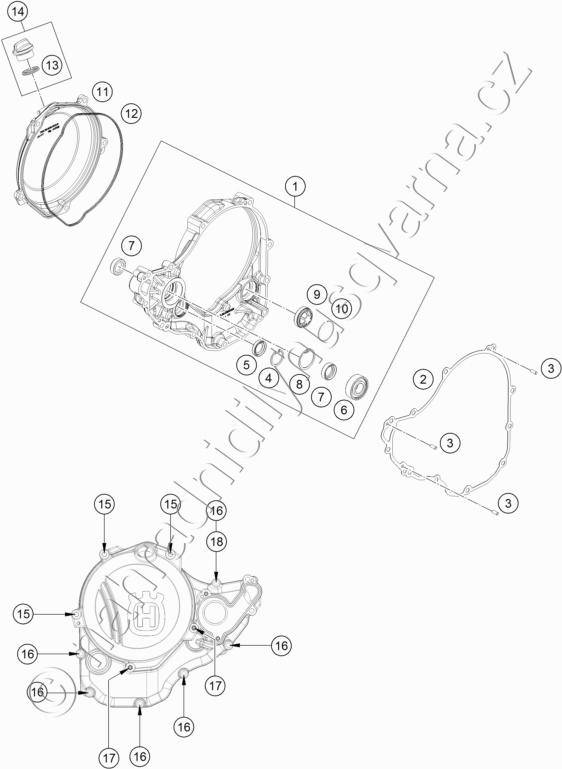

CLUTCH COVER

Zvětšit schéma CLUTCH COVER
CLUTCH COVER
