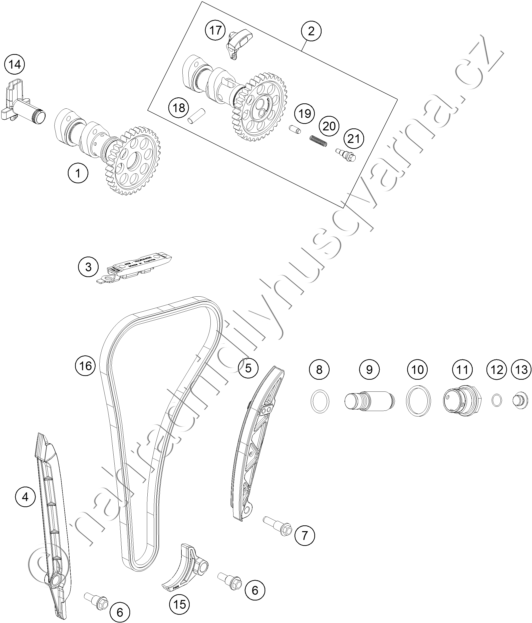

Díly pro TIMING DRIVE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79236009000 CAMSHAFT INTAKE |
3 714 Kč | |
| 2 | 79236010044 CAMSHAFT EXHAUST CPL. |
5 633 Kč | |
| 3 | 79236004000 TIMING CHAIN GUIDE TOP |
491 Kč | |
| 4 | 79236001000 GUIDE RAIL |
169 Kč | |
| 5 | 79236002000 TENSIONING RAIL |
263 Kč | |
| 6 | 77236001160 BUSHING SCREW M6 |
156 Kč | |
| 7 | 77236002160 BUSHING SCREW M8 |
42 Kč | |
| 8 | 0770180020 O-RING 18.00X2.00 NBR70 |
21 Kč | |
| 9 | 77036003000 CHAIN ADJUSTER HYD. 05 |
1 301 Kč | |
| 10 | 0603242920 CU SEAL-RING DIN7603 A24X29X2 |
29 Kč | |
| 11 | 77336008000 HOLDING BOLT M24X1,5 |
334 Kč | |
| 12 | 0770010010 O-RING 10.00X1.00 NBR70 |
18 Kč | |
| 13 | 77236080100 THREADED PLUG |
114 Kč | |
| 14 | 77236081000 ANGLE PIECE F. BREATHER SYSTEM |
73 Kč | |
| 15 | 77236005000 SECURING PROTECTION |
57 Kč | |
| 16 | 79236013100 TIMING CHAIN |
2 428 Kč | |
| 17 | 79236016000 DECO LEVER |
651 Kč | |
| 18 | 0402061780 NEEDLE ROLLER |
57 Kč | |
| 19 | 77336016055 DECO SPRING PIN L=10,6 07 |
368 Kč | |
| 20 | 77336017030 SPRING FOR AUTO DECOMPR. |
45 Kč | |
| 21 | 77336017050 DECO SCREW PLUG |
318 Kč |
