Díly pro CLUTCH

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 79432101076
CLUTCH BASKET
6 975 Kč
2 0405252910
NEEDLE BEAR K 25X29X10
134 Kč
3 78132015100
COLLARSLEEVE
441 Kč
4 78932009000
WASHER 22 X 36,5 X 3
119 Kč
5 78132002300
CLUTCH HUB
1 791 Kč
6 78132013000
WASHER 112X118X1.5
158 Kč
7 79432003000
CLUTCH PRESSURE CAP
603 Kč
8 78132025100
DAMPING RUBBER
50 Kč
9 77232004000
DRIVING SLEEVE D=7,95 L=38
66 Kč
10 0025050166
HH COLLAR SCREW M5X16 TX30
20 Kč
11 59032011100
LINING DISC 2MM 04
372 Kč
12 59032010200
INTERMEDIATE DISC 1,4MM 2002
183 Kč
13 79432054000
PUSH ROD
300 Kč
14 78132018000
TAB WASHER
45 Kč
15 0936181505
HEXAGON NUT DIN0936-M18X1,5 R.
102 Kč
16 0025060306
HH COLLAR SCREW M6X30 TX30
29 Kč
21 59032065000
GASKET FOR SLAVE CYLINDER
45 Kč
22 79432061044
OUTPUT CYL. DOT KPL. 27MM
4 382 Kč
26 0603100141
SEALING RING DIN 7603 10X14X1
27 Kč
27 81232063000
CLUTCH PIPE 09
2 904 Kč
28 59032062000
HOLLOW SCREW + COPPER GASKET
568 Kč
29 0025060206
HH COLLAR SCREW M6X20 TX30
29 Kč
31 50329050000
VENT INJEKTION HYDR. CLUTCH
937 Kč
33 59032010100
INTERMEDIATE DISC 1MM 2002
146 Kč
35 78132057144
PRESSURE PIECE CPL.
494 Kč
36 78132006100
SPRING RING
732 Kč
37 78932005000
BELLEV. SPR. 71X115X1,6IO=4.74
855 Kč
38 78132002111
HUB
1 128 Kč
39 78932010000
INTERMEDIATE DISC 1MM
204 Kč
99 79532010033
CLUTCH DISC PACKAGE
3 733 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE WATER PUMP WATER PUMP

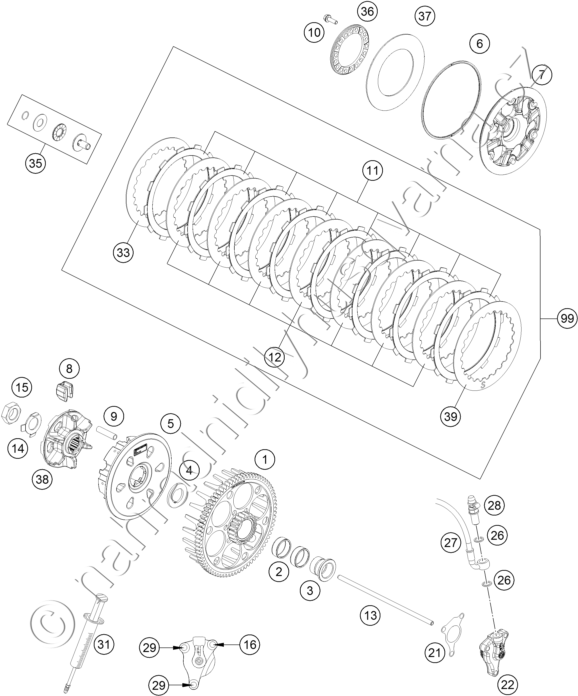

CLUTCH

Zvětšit schéma CLUTCH
CLUTCH
