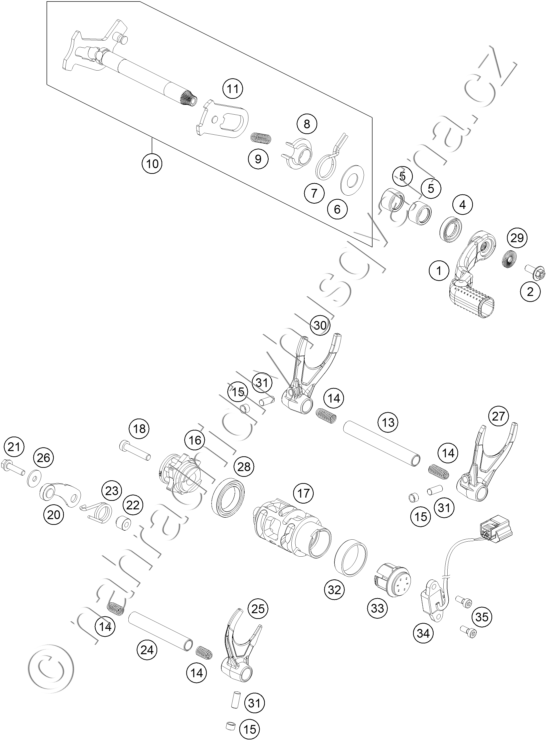

Díly pro SHIFTING MECHANISM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79434031100 SHIFT LEVER CPL. |
1 493 Kč | |
| 2 | 0024060156S HH COLLAR SCREW M6X15 TX30 |
12 Kč | |
| 4 | 0760142460 RADIAL SHAFT SEAL 14X24X6 B |
77 Kč | |
| 5 | 54632095000 NEEDLE SLEEVE HK 1412 14X20X12 |
97 Kč | |
| 6 | 54634050000 STOP DISK 14X30X1 |
29 Kč | |
| 7 | 54634014100 RETURN SPRING 2,2MM \'95 |
79 Kč | |
| 8 | 54634020000 SPRING GUIDE |
116 Kč | |
| 9 | 56534013100 TENSIONING SPRING 0,8MM |
44 Kč | |
| 10 | 79434005133 SHIFT SHAFT CPL. |
2 050 Kč | |
| 11 | 54634108044 SLIDING PLATE |
477 Kč | |
| 13 | 79434020000 GEAR SHIFT RAIL 11,8X91,1MM |
178 Kč | |
| 14 | 58038023200 PRESSURE SPRING 0,9MM |
52 Kč | |
| 15 | 50334018100 SHIFTING ROLLER 6X8X5,2 |
58 Kč | |
| 16 | 79434115000 SHIFT DRUM LOCATING |
631 Kč | |
| 17 | 79434112100 SHIFTING CONTROLLER 5 GEAR |
1 028 Kč | |
| 18 | 0012060303 AH SCREW DIN6912 M6X30 8.8 |
28 Kč | |
| 20 | 78134024044 LOCKING LEVER CPL. |
230 Kč | |
| 21 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
| 22 | 54634052300 SLEEVE FOR LOCKING LEVER |
63 Kč | |
| 23 | 60034023000 ARRESTING LEVER SPRING 03 |
47 Kč | |
| 24 | 79434019000 GEAR SHIFT RAIL 11,8X74,5MM |
178 Kč | |
| 25 | 79434001100 SHIFTING FORK 5TH-6TH GEAR |
1 283 Kč | |
| 26 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 27 | 79434002100 SHIFTING FORK 2ND-4TH GEAR |
1 283 Kč | |
| 28 | 0625618050 BALL BEARING 61805 C3 |
601 Kč | |
| 29 | 50233041500 PAIR NORDLOCK WASHER M6 |
39 Kč | |
| 30 | 79434003100 SHIFTING FORK 1ST-3RD GEAR |
1 283 Kč | |
| 31 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 |
50 Kč | |
| 32 | 79234012010 FRICTION BEARING CONTROLLER |
467 Kč | |
| 33 | 79234012020 MAGNET HOLDER CPL. |
1 070 Kč | |
| 34 | 79211023000 GEAR POSITION SENSOR |
2 308 Kč | |
| 35 | 0984050123S CYLIND. SCR. DIN6912 M5X12 8.8 |
17 Kč |
