Díly pro REAR WHEEL

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 2501000124430
REAR WHEEL CPL.2,15X19\'\' DID 16
17 518 Kč
2 25010010144
REARHUB CPL.
5 884 Kč
3 77710011000
BEARING DISTANCE TUBE 121,5MM
323 Kč
4 0625060058
GR.BALL BEAR.6005 DDU2CG23S6NM
244 Kč
5 0472047175
CIRCLIP DIN0472-47X1,75
29 Kč
6 0760324771
SHAFT SEAL RING 32X47X7 BSL
61 Kč
7 77710016000
DISTANCE BUSHING REAR WHEEL
494 Kč
8 79010071205
SPOKE M4,5X205-19\'\' 16
66 Kč
9 77109072000
SPOKE NIPPLE M4,5 AL 11
52 Kč
10 2501007000030
RIM 2,15X19\'\' DID
6 136 Kč
11 25010060000
BRAKE DISC REAR D=220MM
2 518 Kč
12 59009062013
SPECIAL SCREW M6X13 WS=8 10.9
20 Kč
13 50310073200
RIM BAND 18\'\' AND 19\'\'
198 Kč
16 77710015000
DISTANCE RING
28 Kč
19 7771015104830
SPROCKET 48-T BLACK
1 051 Kč
19 7771015105030
SPROCKET 50-T BLACK
1 051 Kč
19 7771015105230
SPROCKET 52-T BLACK
1 028 Kč
21 0019080266S
COUNTER-SUNK SCREW ISA45 M8X26
33 Kč
22 06923080003
HEX NUT EN 1661 M8 WS13
23 Kč
23 50310165118
CHAIN 5/8X1/4\'\' MX
2 078 Kč
24 50310166000
CONNECTING LINK F. 50310165118
103 Kč
33 78110090000
RIM LOCK 2,15\'\'
375 Kč
34 77110090050
NUT FOR WHEEL HOLDER
33 Kč
38 55003135000
PLUG FOR RIM
29 Kč
39 50210086000
COVERING CAP SFL16
33 Kč
40 77710085044
WHEEL SPINDLE CPL. \'13
1 638 Kč
41 77710084000
CHAIN TENSIONER R/S
326 Kč
42 50304040100
SCREW M10X1.25X50 WS10
65 Kč
43 58414030000
HH COLLAR NUT M10X1,25 WS=13
36 Kč
44 61010086000
COLLAR NUT M25X1,5 WS=32 05
403 Kč
97 77710015010
REAR WHEEL REP. KIT
1 371 Kč
98 00050002043
DRIVETRAIN KIT HQV 13T/48T
3 186 Kč
99 00050000979
SPOKE KIT REAR 19\'\'
2 532 Kč

Další schémata

AIR FILTER AIR FILTER DECAL DECAL EXHAUST SYSTEM EXHAUST SYSTEM FRAME FRAME FRONT BRAKE CALIPER FRONT BRAKE CALIPER FRONT BRAKE CONTROL FRONT BRAKE CONTROL FRONT FORK DISASSEMBLED FRONT FORK DISASSEMBLED FRONT FORK, TRIPLE CLAMP FRONT FORK, TRIPLE CLAMP FRONT WHEEL FRONT WHEEL FUEL PUMP FUEL PUMP HANDLEBAR, CONTROLS HANDLEBAR, CONTROLS MASK, FENDERS MASK, FENDERS PRO LEVER LINKING PRO LEVER LINKING REAR BRAKE CALIPER REAR BRAKE CALIPER REAR BRAKE CONTROL REAR BRAKE CONTROL REAR WHEEL REAR WHEEL SEPERATE ENCLOSURE SEPERATE ENCLOSURE SHOCK ABSORBER SHOCK ABSORBER SHOCK ABSORBER DISASSEMBLED SHOCK ABSORBER DISASSEMBLED SWING ARM SWING ARM TANK, SEAT, COVER TANK, SEAT, COVER WIRING HARNESS WIRING HARNESS WP SHIMS FOR SETTING WP SHIMS FOR SETTING

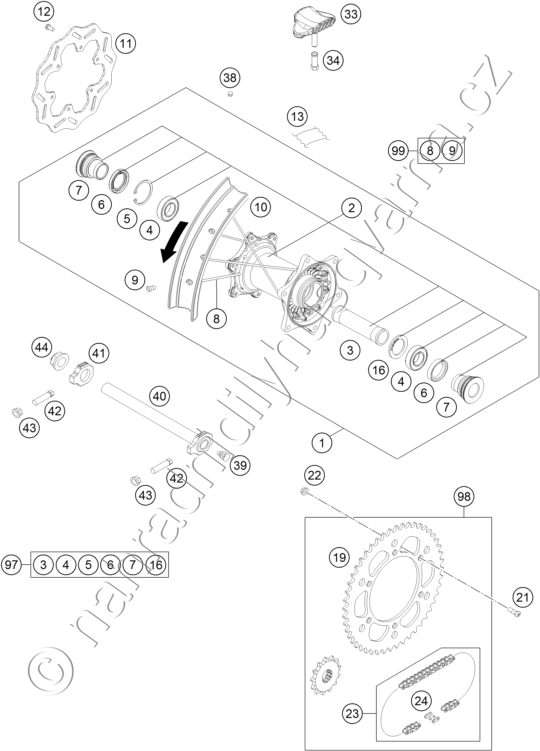

REAR WHEEL
