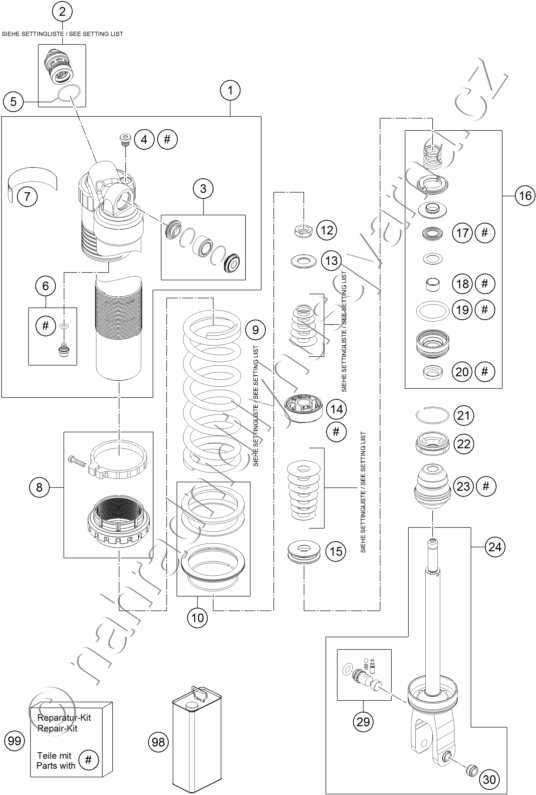

Díly pro SHOCK ABSORBER DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50181040S1 MONOSOCK UPPER PART CPL. |
5 150 Kč | |
| 2 | 50181101S1 DCC-COMPR.DAMP.CONTROL LINK 16 |
2 345 Kč | |
| 2 | 50181101S2 DCC-COMPR.DAMP.CONTROL LINK 16 |
2 345 Kč | |
| 2 | 50181101S3 DCC-COMPR.DAMP.CONTROL LINK 16 |
2 345 Kč | |
| 3 | R12025 REP.KIT BEAR./SEAL KGW 1525 HD |
631 Kč | |
| 4 | 50180095 BLEED PLUG R 1/8 |
95 Kč | |
| 5 | 50180218 O-RING 25X1,5 VITON |
66 Kč | |
| 6 | 36120151S PLUG SCREW M5X6 CPL. |
161 Kč | |
| 7 | 52000128 STICKER WP WARNING |
61 Kč | |
| 8 | 50180991S SPRING ADJUSTER PLASTIC CPL. |
278 Kč | |
| 9 | 91210100S SPRING 260 45 N/MM |
3 382 Kč | |
| 9 | 91210101S SPRING 260 48 N/MM |
3 382 Kč | |
| 9 | 91210102S SPRING 260 51 N/MM |
3 382 Kč | |
| 9 | 91210124S SPRING 260 42 N/MM |
3 382 Kč | |
| 10 | 50180824S SPRING PLATE SET |
1 120 Kč | |
| 11 | 50180273 CIRCLIP 58,2X2 |
47 Kč | |
| 12 | 50181112 PISTON ROD NUT M12X1 |
148 Kč | |
| 13 | 50181092 REBOUND DISC 12X34 T2 H0 |
297 Kč | |
| 14 | 50181030E PISTON ID12 |
613 Kč | |
| 15 | 50181091 REBOUND DISC 12X43 H8 |
297 Kč | |
| 16 | 50180603SA ADAPTER D50 H28 CPL. |
897 Kč | |
| 17 | 50180605S SEAL D18X30X5 08 |
786 Kč | |
| 18 | 46180119 DU-BUSH 18X20X12 |
95 Kč | |
| 19 | 50180103 O-RING 41X5 |
41 Kč | |
| 20 | 50180606 DUST SEAL 1828 08 |
219 Kč | |
| 21 | 50180126 CIRCLIP 53X1,75 |
31 Kč | |
| 22 | 50180626 RESERVOIR CAP D=50 H=10 09 |
892 Kč | |
| 23 | 50181100 BUMP RUBBER Ă 57/18 H46 |
297 Kč | |
| 24 | 50181032S1 MONOSHOCK BOTTOM PART CPL. |
3 643 Kč | |
| 29 | 50181094S ADJUSTING SCREW M8X0,5 CPL. |
195 Kč | |
| 30 | 46811205 ADAPTOR-BUSH M10x1,50, D=15 |
124 Kč | |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT |
2 803 Kč | |
| 99 | R12029 REP. KIT 5018 LINK 2016 US/HQV |
1 452 Kč |
