Díly pro EXHAUST CONTROL

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 0019050106S
HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9
18 Kč
2 54837062000
RETAINING PLATE R/S 07
178 Kč
3 54837063000
RETAINING PLATE L/S 07
178 Kč
4 0770160021
O-RING 16,00X2,00 VITON
25 Kč
5 54837061044
CONTR.VALVE L/S CPL. 07
937 Kč
6 54837061144
CONTR.VALVE R/S CPL. 07
937 Kč
10 0912060203
AH SCREW DIN0912-M 6X20
17 Kč
11 54637067000
SPRING SLEEVE
60 Kč
12 54637066000
OVERLOAD SPRING
61 Kč
13 54637085300
RETAIN.PLATE CONTROL FLAP \'92
69 Kč
14 54637065000
CONTROL LEVER WITH BALL TYPE
419 Kč
15 54637068100
BUSHING SLEEVE
126 Kč
16 54837064144
GEAR SEGMENT CPL. RIGHT 07
571 Kč
17 54837064150
GEAR SEGMENT L/S 250 07
658 Kč
18 54737019000
BEAR. SLEEVE F.CONTROL FLAP\'97
124 Kč
19 0770150151
O-RING 15,00X1,50 VITON
23 Kč
20 54837020200
CONTROL CLAP 250 07
1 759 Kč
21 0912060163
AH SCREW DIN0912-M 6X16
17 Kč
22 54637056100
WASHER 6,5X11X2
21 Kč
23 0912060083
AH SCREW DIN0912-M 6X 8
18 Kč
25 0014050123
HH COLLAR SCREW M 5X12 WS=6
29 Kč
26 0349000050
WASHER DIN7349-5X15X2
17 Kč
27 54835005000
WATER PUMP WHEEL 07
66 Kč
28 0760082472
SHAFT SEAL RING 8X24X7 A DUO
61 Kč
29 0137060003
SPRING WASHER DIN 137 B - 6
17 Kč
30 0625160020
BALL BEARING 16002 C3
284 Kč
31 54837050044
CENTRIFUGAL TIMER CPL. 250/300
2 588 Kč
32 0471120010
RETAINING RING DIN 471 12X1
4 Kč
33 54837054000
DISTANCE BUSH. CENTRIFUG.TIMER
116 Kč
34 54637071010
AXIAL WASHER AS1226
53 Kč
35 54637097200
AXIAL NEEDLE BEARING AXK 1226
150 Kč
36 54637098100
BALL BEARING 626LLBC3/5K
190 Kč
40 0014050203
HH COLLAR SCREW M 5X20 WS=6
55 Kč
41 54637070100
COVER LID 250-380\'98
265 Kč
43 54837075000
SPRING GUIDE 250/300
255 Kč
44 0770021120
O-RING 12,37X2,62 NBR70
21 Kč
45 0770240020
O-RING 24,00X2,00 NBR70
18 Kč
46 54837069000
ADJUST. SPRING 2003
63 Kč
47 54637072300
AUXILIARY SPRING MID., YELLOW
41 Kč
47 54837072000
AUXILIARY SPRING SOFT, RED
36 Kč
47 54837072100
AUXILIARY SPRING HARD, GREEN
42 Kč
48 54637071200
SPRING INSERT
214 Kč
50 47237056000
ANGLE LEVER
767 Kč
51 0988101610
SHIM WASHER DIN988 10X16X1
15 Kč
52 0618101410
NEEDLE SLEEVE HK 1010 10X14X10
82 Kč
53 54837057000
CONTROL LEVER 03
761 Kč
60 54637095444
CONNECTING ROD CPL.
326 Kč
61 50237195055
SECURING DIN-71805-S-8
29 Kč
99 54835055110
WATER PUMP REP. KIT SX 07-14
419 Kč

Další schémata

CARBURETOR CARBURETOR CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER, CYLINDER HEAD CYLINDER, CYLINDER HEAD ENGINE CASE ENGINE CASE EXHAUST CONTROL EXHAUST CONTROL IGNITION SYSTEM IGNITION SYSTEM KICK STARTER KICK STARTER REED VALVE CASE REED VALVE CASE SHIFTING MECHANISM SHIFTING MECHANISM TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT

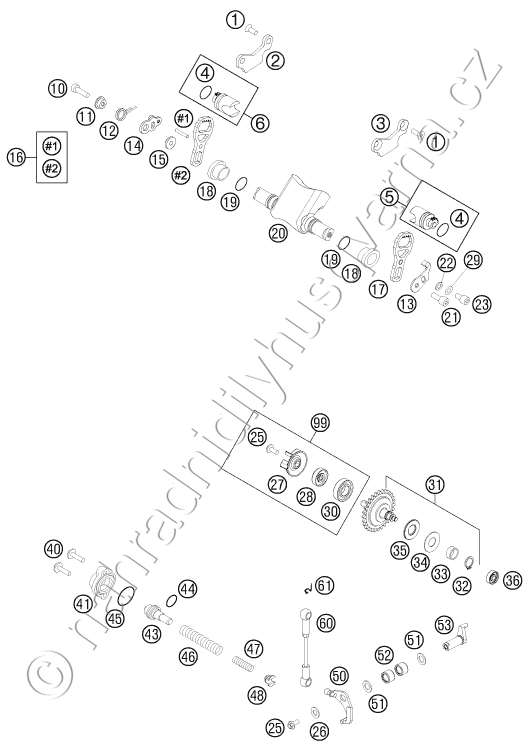

EXHAUST CONTROL

Zvětšit schéma EXHAUST CONTROL
EXHAUST CONTROL
