Díly pro KICK STARTER

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 77133070144
KICKSTARTER CPL.
2 450 Kč
2 0019080206S
FLAT HEAD SCREW M. ISA45 M8X20
33 Kč
3 54633037000
WASHER 8MM GALVANIZED
103 Kč
4 0760193070
SHAFT SEAL RING 19X30X7 B
77 Kč
7 0471170010
CIRCLIP DIN0471-17X1
17 Kč
8 0471190120
CIRCLIP DIN0471-19X1,2
5 Kč
13 54633074000
SPRING HANGER
105 Kč
17 0405222610
NEEDLE BEARING K 22X26X10 A
175 Kč
19 59033069000
BUMP PART
379 Kč
24 54833024000
INTERMEDIATE GEAR 2003
1 475 Kč
25 54633025000
KICKSTARTER SPRING
122 Kč
26 54633026000
DRIVING HUB
71 Kč
28 58033028000
RATCHET GEAR SPRING 1,2 MM
53 Kč
31 58033031000
STOP DISK 22,2 X 30 X 1,5
36 Kč
32 59033080000
SHIM 20X32X1
41 Kč
33 54633090000
STOP DISK 17,2X25X1
49 Kč
34 0988172405
SHIM WASHER DIN0988-17X24X0,5
15 Kč
50 59033050100
KICKSTARTER SHAFT
1 100 Kč
51 54833051034
KICKSTARTER GEAR 34-T 03
1 240 Kč
52 59033052000
RATCHET GEAR KICKSTARTER
733 Kč
60 0025060106
HH COLLAR SCREW M6X10 TX30
28 Kč
61 0025060206
HH COLLAR SCREW M6X20 TX30
29 Kč

Další schémata

CARBURETOR CARBURETOR CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER, CYLINDER HEAD CYLINDER, CYLINDER HEAD ENGINE CASE ENGINE CASE EXHAUST CONTROL EXHAUST CONTROL IGNITION SYSTEM IGNITION SYSTEM KICK STARTER KICK STARTER REED VALVE CASE REED VALVE CASE SHIFTING MECHANISM SHIFTING MECHANISM TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT

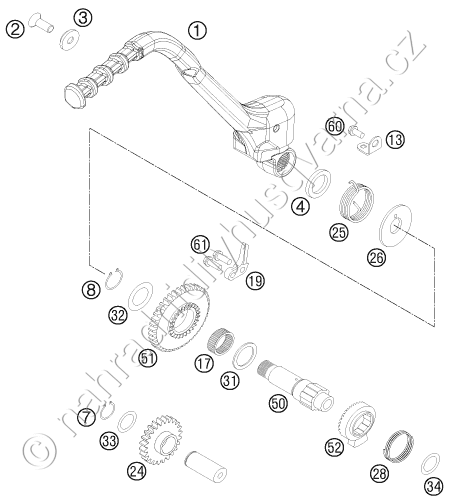

KICK STARTER

Zvětšit schéma KICK STARTER
KICK STARTER
