Díly pro FRONT FORK DISASSEMBLED

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
3 48601327S1
AXLE CLAMP R/S WITH INNER TUBE
6 976 Kč
4 48601326S1
AXLE CLAMP L/S WITH INNER TUBE
6 976 Kč
5 0025080256
HH COLLAR SCREW M8X25 TX40
33 Kč
6 48601008
GUIDING BUSH 47X49X20 R11
219 Kč
7 48601009
GUIDING BUSH 48X52X12 R11
219 Kč
8 48600013
SUPPORT RING 50 X 57,6 X 1,5
118 Kč
9 48601414
OELSEALRING 48X57,9X11,4
377 Kč
10 48600070
LOCK WASHER SB58
44 Kč
11 48601178
DUST SEAL DL48X58,4X5,7 RED
340 Kč
12 48600736
OUTER TUBE L577 D54/60MM 2L
8 770 Kč
13 91410100S
SPRING 4,0N/MM SET D=4,9MM
3 382 Kč
13 91410101S
SPRING 4,2N/MM SET D=4,9MM
3 382 Kč
13 91410102S
SPRING 4,4N/MM SET D=4,9MM
3 382 Kč
13 91410103S
FORK SPRING L= 470 4,6 N/MM SET
3 382 Kč
13 91410104S
SPRING 4,8N/MM SET D=4,9MM
3 382 Kč
13 91410105S
SPRING 5,0N/MM SET D=4,9MM
3 382 Kč
14 48600456
SPACER 43X35X2,5
340 Kč
14 48600458
SPACER 43X35X1,5
340 Kč
15 48601050E
SCREW CAP M51X1,5 REB. KPL.
1 315 Kč
15 48601116E
SCREW CAP M51X1,5 CPL.
1 315 Kč
16 R14033
SCREW CAP SMALL PART KIT
395 Kč
17 48601031S
CARTRIDGE KIT
2 393 Kč
18 R14044
HYDROSTOP KIT
395 Kč
19 48601403S
BASE VALVE KIT
776 Kč
20 48601025S1
CHECK VALVE D21 CPL.
751 Kč
21 R14035
SCREW SLEEVE KIT
753 Kč
22 48601123S
NEEDLE KIT
445 Kč
23 R14056
TAP KIT
753 Kč
24 48600382
SHUTTLE VALVE SPRING C=0,4
52 Kč
25 48601343S
PISTON ROD CPL.
2 410 Kč
26 48601035S1
SPRING GUIDE CPL.
199 Kč
27 48601315S1
PRESSURE TANK FOR 24187O73 CPL
1 096 Kč
27 48601315S2
PRESSURE TANK FOR 24187O51 CPL
1 096 Kč
27 48601315S3
PRESSURE TANK FOR 24187O57 CPL
1 096 Kč
28 46811265
O-RING VITON 2,2X1,6
36 Kč
31 T14034
FUCHS GREASE IPR (250G)
1 280 Kč
99 R24001
REPAIR - KIT
2 337 Kč

Další schémata

AIR FILTER AIR FILTER DECAL DECAL EXHAUST SYSTEM EXHAUST SYSTEM FRAME FRAME FRONT BRAKE CALIPER FRONT BRAKE CALIPER FRONT BRAKE CONTROL FRONT BRAKE CONTROL FRONT FORK DISASSEMBLED FRONT FORK DISASSEMBLED FRONT FORK, TRIPLE CLAMP FRONT FORK, TRIPLE CLAMP FRONT WHEEL FRONT WHEEL HANDLEBAR, CONTROLS HANDLEBAR, CONTROLS MASK, FENDERS MASK, FENDERS PRO LEVER LINKING PRO LEVER LINKING REAR BRAKE CALIPER REAR BRAKE CALIPER REAR BRAKE CONTROL REAR BRAKE CONTROL REAR WHEEL REAR WHEEL SEPERATE ENCLOSURE SEPERATE ENCLOSURE SHOCK ABSORBER SHOCK ABSORBER SHOCK ABSORBER DISASSEMBLED SHOCK ABSORBER DISASSEMBLED SWING ARM SWING ARM TANK, SEAT, COVER TANK, SEAT, COVER WP SHIMS FOR SETTING WP SHIMS FOR SETTING

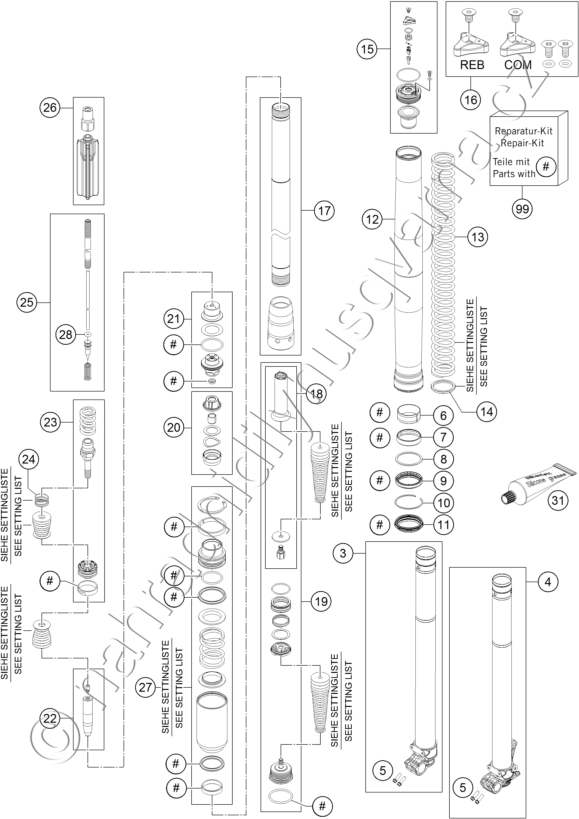

FRONT FORK DISASSEMBLED

Zvětšit schéma FRONT FORK DISASSEMBLED
FRONT FORK DISASSEMBLED
