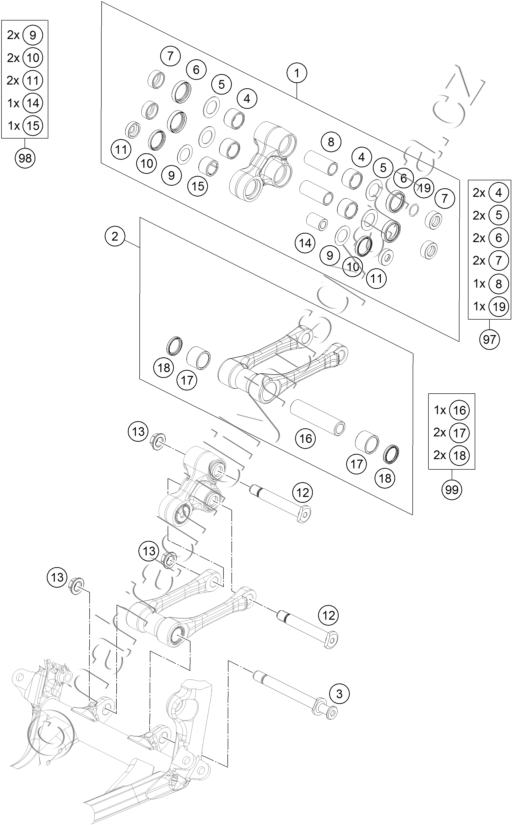

Díly pro PRO LEVER LINKING
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7770408004401 TRIANGLE LEVER CPL. SX 2014 |
6 064 Kč | |
| 2 | 7770408304401 PULL ROD CPL. SX 15 |
4 592 Kč | |
| 3 | 79004084000 BOLT TIE-ROD BEARING M14X1,5 |
940 Kč | |
| 4 | 54603097000 NEEDLE BUSH HK 2016 |
221 Kč | |
| 5 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 6 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 7 | 77204080130 BUCKET SHAFT SEAL RING 25X11 |
203 Kč | |
| 8 | 54603081000 BUSHING SLEEVE 15 X 20 X 48 |
406 Kč | |
| 9 | 50180604 SHIM D29,75 X D19 X T0,4 08 |
44 Kč | |
| 10 | 0760243050 SHAFT SEAL RING 24X30X5 |
53 Kč | |
| 11 | 77204080020 BUCKET FOR SHAFT SEAL RING |
150 Kč | |
| 12 | 77204085000 BOLT FOR CANTILEVER M14 |
834 Kč | |
| 13 | 77204087000 HEX NUT M14X1.5 WS17 |
55 Kč | |
| 14 | 77204080010 BEARING SLEEVE 10X18X25,5 |
135 Kč | |
| 15 | 0618182416 NEEDLE BUSH HN1816 RS 18/24/16 |
206 Kč | |
| 16 | 79004084010 BEARING SLEEVE F. TIE-ROD 16 |
416 Kč | |
| 17 | 0618222820 NEEDLE BEARING HK2220 22X28X20 |
198 Kč | |
| 18 | 0760222841 SHAFT SEAL RING G22x28x4 |
49 Kč | |
| 19 | 54603090010 STEEL WASHER 15,2X19X0,1 |
45 Kč | |
| 19 | 54603090020 STEEL WASHER 15,2X19X0,2 |
45 Kč | |
| 19 | 54603090030 STEEL WASHER 15,2X19X0,3 |
45 Kč | |
| 97 | 77204080110 TRIANGLE LEVER REP. KIT REAR |
1 161 Kč | |
| 98 | 77204080090 TRIANGLE LEVER REP. KIT FRONT |
776 Kč | |
| 99 | 77204083010 PULL ROD REP. KIT SX/SX-F |
776 Kč |
