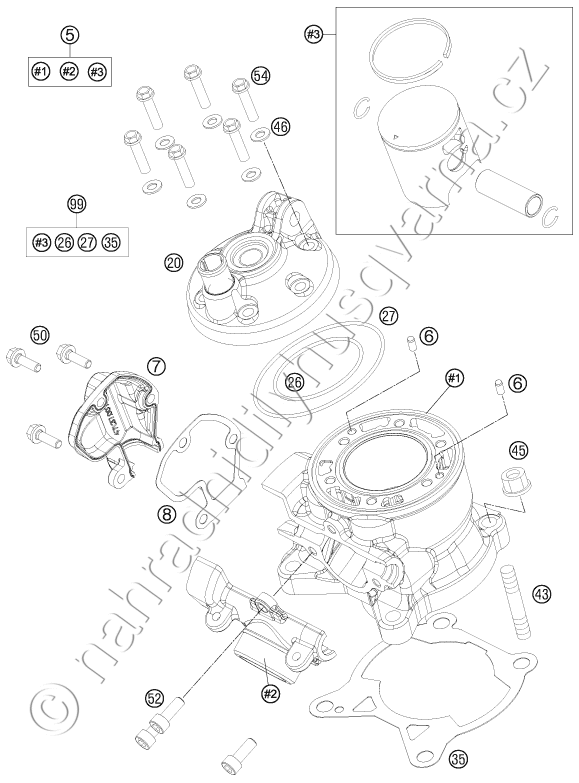

Díly pro CYLINDER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 5 | 47130038000 CYLINDER + PISTON 85 SX |
17 845 Kč | |
| 6 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 7 | 47137007000 CONTROL COVER |
384 Kč | |
| 8 | 47137008000 GASKET CONTROL COVER |
68 Kč | |
| 20 | 47130006000 CYLINDER HEAD 85 SX |
1 921 Kč | |
| 26 | 0770540020 O-RING 54X2 VITON |
154 Kč | |
| 27 | 0770800021 O-RING 80,00X2,00 VITON |
106 Kč | |
| 35 | 47030035000 CYLINDER BASE GASKET 0,50MM |
156 Kč | |
| 35 | 47030035020 CYLINDER BASE GASKET 0,20MM |
156 Kč | |
| 35 | 47030035030 CYLINDER BASE GASKET 0,30MM |
156 Kč | |
| 43 | 0835080240 STUD DIN 0835-M 8X24 |
58 Kč | |
| 45 | 46030045000 FLANGED NUT M8 WS10 |
87 Kč | |
| 46 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 50 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 52 | 0012060164 AH SCREW DIN6912 M6X16 SL |
36 Kč | |
| 54 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 99 | 00050000204 PISTON KIT GR.I 85 SX 06-15 |
3 335 Kč | |
| 99 | 00050000205 PISTON KIT GR.II 85 SX 03-15 |
3 335 Kč |
