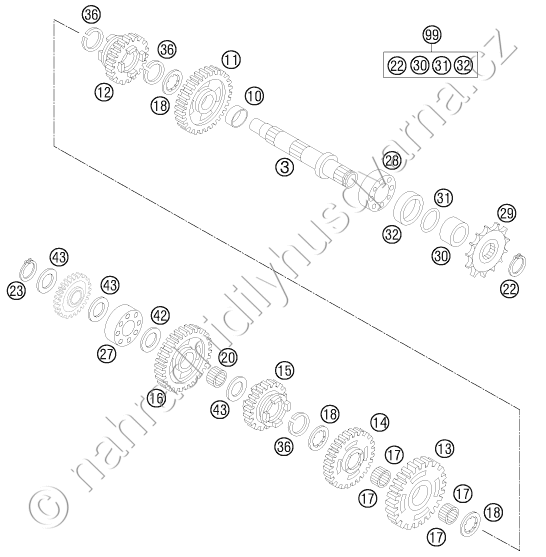

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 3 | 47033003100 COUNTERSHAFT |
2 880 Kč | |
| 10 | 47033021000 IDLER GEAR BUSHING 07 |
578 Kč | |
| 11 | 47033011200 IDLER GEAR 2ND G. 28-T 09 |
2 518 Kč | |
| 12 | 47033012100 SLIDING GEAR 6TH G. 21-T |
2 077 Kč | |
| 13 | 47033013200 IDLER GEAR 3RD G. |
2 213 Kč | |
| 14 | 47033014200 IDLER GEAR 4TH G. |
2 309 Kč | |
| 15 | 47033015100 SLIDING GEAR 5TH G. 25-T |
2 033 Kč | |
| 16 | 47033016000 IDLER GEAR 1ST G. 29-T 03 |
2 213 Kč | |
| 17 | 50133099000 NEEDLE CAGE K18X22X10 PARTED |
406 Kč | |
| 18 | 47033095000 SHIM |
61 Kč | |
| 20 | 47033099000 NEEDLE BEARING K15X19X10S |
159 Kč | |
| 22 | 49033091000 CIRCLIP AS20X1,75 |
28 Kč | |
| 23 | 0471150010 CIRCLIP DIN0471-15X1 |
29 Kč | |
| 27 | 0625160020 BALL BEARING 16002 C3 |
284 Kč | |
| 28 | 0625062041 BALL BEARING 6204 JR2 C4 |
398 Kč | |
| 29 | 47033029013 ENGINE SPROCKET 13-T 85 SX 03 |
360 Kč | |
| 29 | 47033029014 ENGINE SPROCKET 14-T 85 SX 03 |
360 Kč | |
| 30 | 47033030000 SPACER FOR SPROCKET |
509 Kč | |
| 31 | 46033031000 O-RING 18,77X1,78 |
49 Kč | |
| 32 | 0760263561 SHAFT SEAL RING 26X35X6BSL NB |
73 Kč | |
| 36 | 0417210120 CIRCLIP SW21 |
61 Kč | |
| 42 | 47033040000 STOP DISC 15X25X1 |
31 Kč | |
| 43 | 47033043000 STOP DISC 15X25X0,5 |
94 Kč | |
| 99 | 00050000942 COUNTER SHAFT REP.KIT 105/85SX |
538 Kč |
