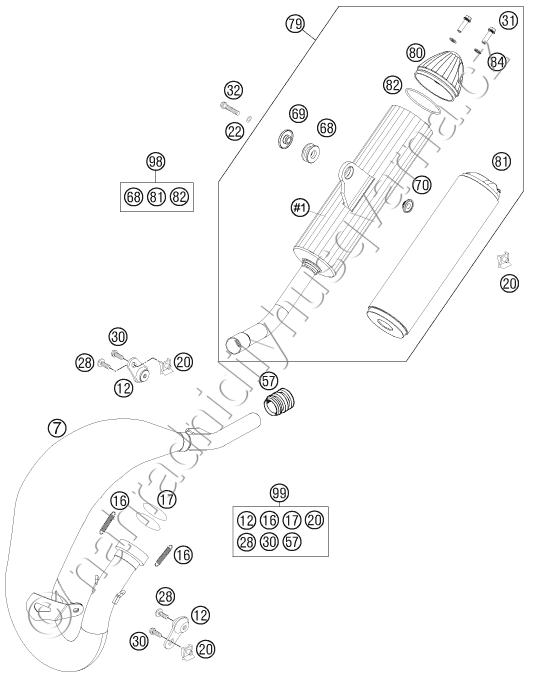

Díly pro EXHAUST SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 7 | 47005007100 EXHAUST PIPE 85 SX 07 |
4 581 Kč | |
| 12 | 50305012000 SWINGELEMENT FOR EXHAUST PIPE |
257 Kč | |
| 16 | 50305016000 TEN.SPRING L=62MM EY.MOVEABLE |
98 Kč | |
| 17 | 0770380030 O-RING 38,00X3,00 VITON |
58 Kč | |
| 20 | 54603048100 CLIP NUT M6 |
87 Kč | |
| 22 | 0137060003 SPRING WASHER DIN 137 B - 6 |
17 Kč | |
| 28 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 30 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 31 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 32 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 57 | 54605057000 RUBBER SLEEVE D=21MM/23MM \'93 |
467 Kč | |
| 68 | 77205068000 DAMP. COMPON. BLACK |
69 Kč | |
| 69 | 46205169000 BUSHING 7.5X12X28X7.6 |
66 Kč | |
| 70 | 77205069000 BUSHING 7.5x12x20x8.2 11 |
82 Kč | |
| 79 | 47005079100 SILENCER 85 SX 06 |
4 046 Kč | |
| 80 | 50305079169 SILENCER ENDCAP SX REAR |
762 Kč | |
| 81 | 50305079160 STUFFING YARN 160 GRAM |
1 346 Kč | |
| 82 | 0770055020 0-RING 55,00X2,00 NBR70 |
23 Kč | |
| 84 | 50233041000 PAIR OF WASHERS M 6 NORDLOCK |
39 Kč | |
| 98 | 00050000804 SILENCER REP. KIT 160 GRAM |
Na dotaz | 1 |
| 99 | 00050000812 EXHAUST HARDWARE KIT MINI |
1 280 Kč |
