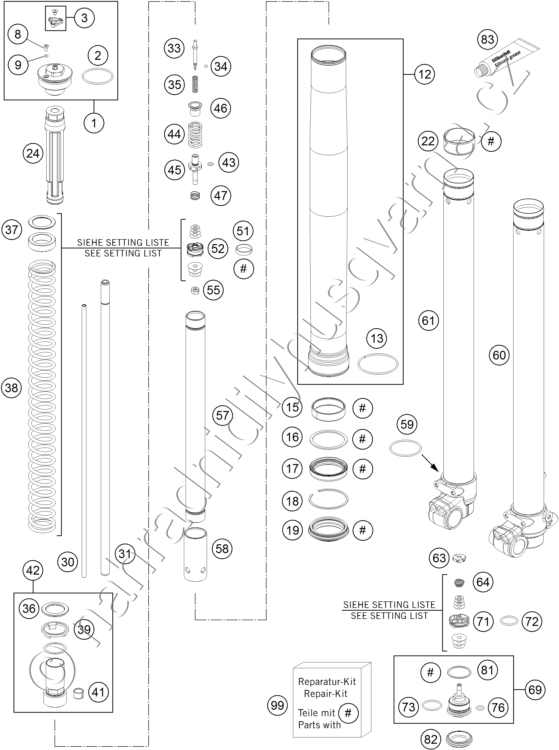

Díly pro FRONT FORK DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 43570395S1 SCREW CAP M46X1,5 CPL. |
740 Kč | |
| 2 | 46811042 O-RING 40,00X2,00 WP |
41 Kč | |
| 3 | 48600812S ADJUSTING KNOB + SCREW |
65 Kč | |
| 8 | 48600481 VENT SCREW M4X8 |
26 Kč | |
| 9 | 48600046 O-RING NBR 3X1,5 |
44 Kč | |
| 12 | 43570614E OUTER TUBE L510 D49/53 |
3 576 Kč | |
| 13 | 43570099 GUIDING RING D=53MM |
384 Kč | |
| 15 | 43570618 GUIDE BUSHING 43X47X12 |
121 Kč | |
| 16 | 43570092 SUPPORT RING 45 X 52,5 X 1,5 |
429 Kč | |
| 17 | 43570201 OIL SEAL RING 43 X 52,9 X 9,5 |
283 Kč | |
| 18 | 43570008 LOCK WASHER SB53 |
33 Kč | |
| 19 | 43570202 DUST STRIPPER 43 X 53,4 X 11,8 |
283 Kč | |
| 22 | 43570617 GUIDE BUSHING 42X44X20 R11 |
129 Kč | |
| 24 | 43570396S STOP L135MM D28,6MM D12MM CPL. |
794 Kč | |
| 30 | 48600695 ADJUSTMENT TUBE L=442 MM |
188 Kč | |
| 31 | 48600694 PISTON ROD D=12MM L=476MM |
1 787 Kč | |
| 33 | 48600277 ADJUSTER NEEDLE 07 |
124 Kč | |
| 34 | 48600298 O-RING 2X1,5 NBR |
60 Kč | |
| 35 | 48600444 REBOUND SPRING C=4N/MM |
68 Kč | |
| 36 | 43570133 SPACER 26X38X2,5 |
711 Kč | |
| 37 | 43570134 SPACER 26X38X5 |
724 Kč | |
| 37 | 43570135 SPACER 26X38X10 |
711 Kč | |
| 37 | 43570136 SPACER 26X38X1,5 |
711 Kč | |
| 38 | 95010031S SPRING 3,2 N/MM SET D=4,2MM |
4 536 Kč | |
| 38 | 95010032S SPRING 3,4 N/MM SET D=4,4MM |
4 536 Kč | |
| 38 | 95010033S SPRING 3,6 N/MM SET |
4 536 Kč | |
| 39 | 43570131 INTERM. RING 26,2X38,5X3 |
180 Kč | |
| 41 | 48600430 DU BUSH FOR PISTON ROD |
66 Kč | |
| 42 | 48600830S2 SCREW SLEEVE M27X0,8 CPL. |
390 Kč | |
| 43 | 48600299 O-RING 6X1,2 NBR |
60 Kč | |
| 44 | 48600511S REBOUND SPRING L32 C17 CPL. |
114 Kč | |
| 45 | 48600513 TAP REBOUND 07 |
736 Kč | |
| 46 | 48600525 GUIDING BUSH REBOUND SPRING |
95 Kč | |
| 47 | 48600382 SHUTTLE VALVE SPRING C=0,4 |
52 Kč | |
| 51 | 48600455 PISTON RING 5X1X68 |
340 Kč | |
| 52 | 48600575 PISTON REBOUND SX 2007 |
453 Kč | |
| 55 | 40540486 NUT M6X0,5 REBOUND |
57 Kč | |
| 57 | 48600870 TUBE 23 L=330 |
730 Kč | |
| 58 | 48600764 ADAPTER SLEEVE D23/D28 |
263 Kč | |
| 59 | 43570023 O-RING NBR 41X2 |
41 Kč | |
| 60 | 43570559S1 AXLE CLAMP L/S + TUBE CPL. |
5 086 Kč | |
| 61 | 43570558S1 AXLE CLAMP R/S + TUBE CPL. |
5 086 Kč | |
| 63 | 48600885 NUT VALVE M6X0,5 LH=1,2 |
69 Kč | |
| 64 | 48600202 SPRING CHECK VALVE D=0,7 |
29 Kč | |
| 69 | 48600586E TAP COMPRESSION CPL. |
921 Kč | |
| 71 | 48600047 PISTON COMPRESSION D=27,9 |
1 007 Kč | |
| 72 | 46811499 O-RING NBR 21X2 |
34 Kč | |
| 73 | 35480320 O-RING NBR 24X2 |
33 Kč | |
| 76 | 48600049 O-RING NBR 8X2 |
44 Kč | |
| 81 | 48600004 COPPER WASHER 29,5X33,5X1 |
36 Kč | |
| 82 | 48600141 RUBBER CAP D=35MM |
42 Kč | |
| 83 | T14034 FUCHS GREASE IPR (250G) |
1 280 Kč | |
| 99 | R511 REPAIR-KIT |
1 913 Kč |
