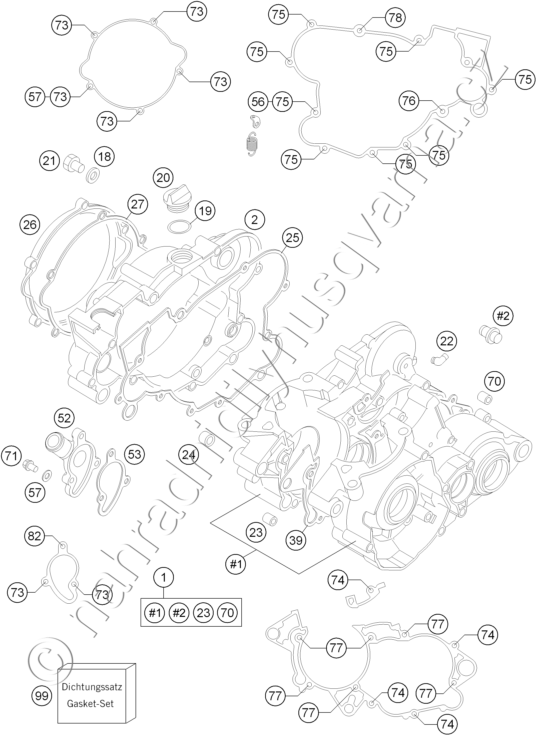

Díly pro ENGINE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 47030000144 ENGINE CASE CPL. 85 SX 2008 |
8 277 Kč | |
| 2 | 47030001100 CLUTCH COVER 85 SX 06 |
3 707 Kč | |
| 18 | 0603101420 COPPER GASKET 10,2X14X2 MM 01 |
46 Kč | |
| 19 | 0770160030 O-RING 16,00X3,00 NBR 70 |
17 Kč | |
| 20 | 79430020033 OIL FILLER CAP M24X3 WITH O-R |
89 Kč | |
| 21 | 46030021100 OIL DRAIN PLUG M10 WS=13 |
236 Kč | |
| 22 | 45130022000 ANGLE PIECE 50CCM LC 2001 |
84 Kč | |
| 23 | 47030023100 DOWEL 13X13 |
84 Kč | |
| 24 | 45130023000 DOWEL 7X9X10 |
71 Kč | |
| 25 | 47030025000 INNER CLUTCH COVER GASKET |
349 Kč | |
| 26 | 47030626000KA OUTER CLUTCH COVER |
1 431 Kč | |
| 27 | 47030027100 GASKET FOR OUTER CLUTCH COVER |
199 Kč | |
| 39 | 47030039000 GASKET F. ENGINE CASE 85 SX 03 |
406 Kč | |
| 52 | 47035052000 WATER PUMP COVER 85 SX 2003 |
799 Kč | |
| 53 | 47035053000 GASKET FOR WATER PUMP COVER 03 |
166 Kč | |
| 56 | 47003071000 SPRINGHOLDER |
158 Kč | |
| 57 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 70 | 47030023000 DOWEL 14,5X19 |
130 Kč | |
| 71 | 0025060106 HH COLLAR SCREW M6X10 TX30 |
28 Kč | |
| 73 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 74 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 75 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 76 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 77 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 78 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 82 | 0015060653 HH COLLAR SCREW M 6X65 WS=8 |
33 Kč | |
| 99 | 47030099100 GASKET SET CPL. 85/105SX 04 |
3 775 Kč |
