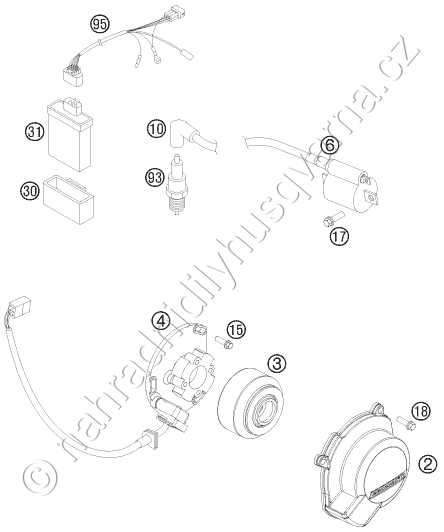

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 2 | 47030002200 IGNITION COVER |
1 609 Kč | |
| 3 | 46139005000 ROTOR 65 SX 2003 |
1 657 Kč | |
| 4 | 46139004000 STATOR 65/85 SX 2003 |
4 722 Kč | |
| 6 | 46139006100 IGNITION COIL CPL. 65 SX 2003 |
676 Kč | |
| 10 | 47039090000 SPARK PLUG CAP NGK REINFORC.04 |
481 Kč | |
| 15 | 0015050163 HH COLLAR SCREW M 5X16 WS=8 |
17 Kč | |
| 17 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 |
17 Kč | |
| 18 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 30 | 46139030000 RUBBER BR. DIGI.BOX 65SX 2003 |
138 Kč | |
| 31 | 47039031000 CDI UNIT 85 SX 2003 |
4 108 Kč | |
| 93 | 51539093000 SPARK PLUG BR9ECMVX |
496 Kč | |
| 95 | 46139095000 WIRING HARNESS 65 SX 2003 |
1 222 Kč |
