SULKAR - Oficiální zastoupení Husqvarna

Díly pro FRAME

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 4710300100028
FRAME \'\'471M3\'\' 85 TC 2014
32 563 Kč
2 47103002000
SUB FRAME
7 089 Kč
3 0934080003
HEXAGON NUT DIN0934-M 8
18 Kč
4 54606004000
PLUG 37MM
58 Kč
5 54310086200
SELF LOCKING NUT M8 10.9
21 Kč
6 47103013100
REINFORCING
154 Kč
7 0025080356
HH COLLAR SCREW M8X35 TX40
33 Kč
8 78103002010
SUB FRAME APPLICATION LEFT
185 Kč
9 78103002020
SUB FRAME APPLICATION RIGHT
185 Kč
10 59001037000
SPECIAL SCREW M8X26 WS=10
53 Kč
11 54310086100
SELF LOCKING NUT M10 CU WS=14
20 Kč
12 0019080206S
FLAT HEAD SCREW M. ISA45 M8X20
33 Kč
13 47003013000
ENGINE BRACKET SCREW 85 SX
154 Kč
14 58111076000
CABLE SUPPORT KHS NR.150-47610
65 Kč
15 47103040033
FOOTREST CPL. 14
1 822 Kč
16 47103040000
FOOTREST L/S
666 Kč
17 47103041000
FOOTREST R/S
666 Kč
18 54603041000
FOOTREST SPRING L/S & R/S
71 Kč
19 54803044000
BOLT FOR FOOT PED 03
203 Kč
20 0125100003
WASHER DIN 125 A 10.5
13 Kč
21 0094032250
PIN DIN 0094-3.2X25 NIRO
5 Kč
22 51103053000
CHAIN SLIDING PIECE BELOW \'97
260 Kč
23 36003014000
LOCK WASHER 8MM
15 Kč
24 0025080306
HH COLLAR SCREW M8X30 TX40
32 Kč
25 51103053051
BUSHING 8,2X10X20
79 Kč
26 50307012000
ADH. FOIL TRANSP. 80X80 MM 04
39 Kč
99 51103053110
CHAIN SLIDING KIT BELOW MINI
260 Kč

Další schémata

AIR FILTER AIR FILTER DECAL DECAL EXHAUST SYSTEM EXHAUST SYSTEM FRAME FRAME FRONT BRAKE CALIPER FRONT BRAKE CALIPER FRONT BRAKE CONTROL FRONT BRAKE CONTROL FRONT FORK DISASSEMBLED FRONT FORK DISASSEMBLED FRONT FORK, TRIPLE CLAMP FRONT FORK, TRIPLE CLAMP FRONT WHEEL FRONT WHEEL HANDLEBAR, CONTROLS HANDLEBAR, CONTROLS MASK, FENDERS MASK, FENDERS REAR BRAKE CALIPER REAR BRAKE CALIPER REAR BRAKE CONTROL REAR BRAKE CONTROL REAR WHEEL REAR WHEEL SEPERATE ENCLOSURE SEPERATE ENCLOSURE SHOCK ABSORBER SHOCK ABSORBER SHOCK ABSORBER DISASSEMBLED SHOCK ABSORBER DISASSEMBLED SWING ARM SWING ARM TANK, SEAT, COVER TANK, SEAT, COVER WP SHIMS FOR SETTING WP SHIMS FOR SETTING

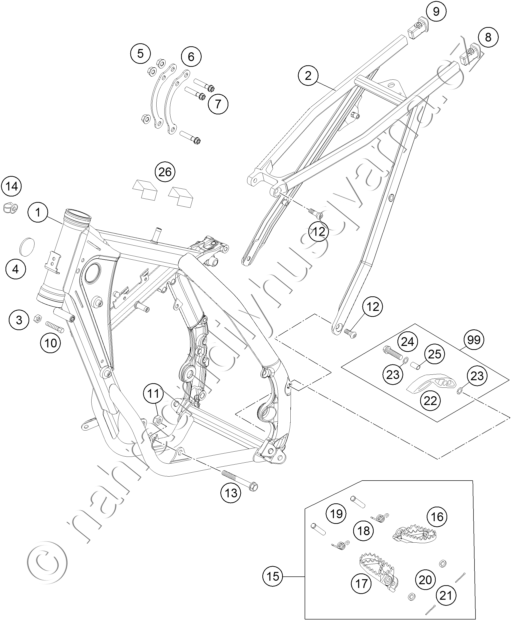

FRAME
