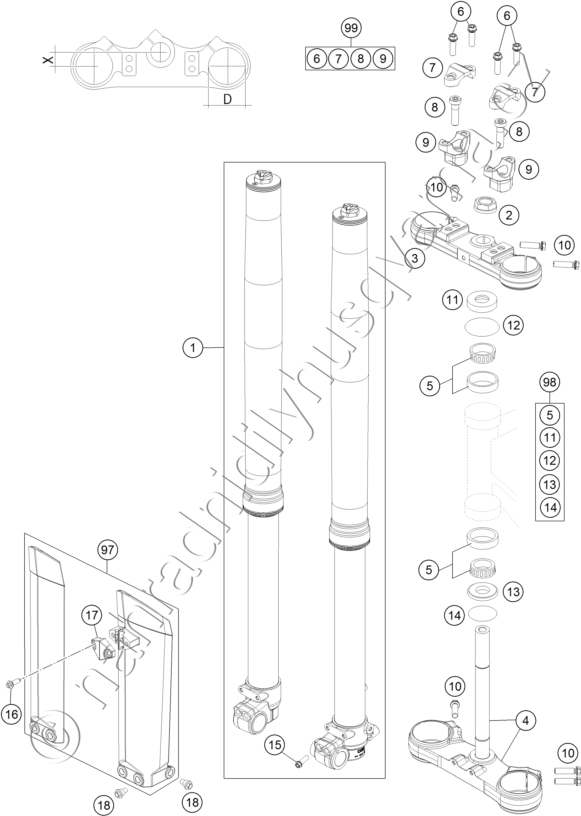

Díly pro FRONT FORK, TRIPLE CLAMP
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 05187M0501 FORK WP 85SX 2013 |
39 373 Kč | |
| 2 | 59030029000 HH NUT M20X1,5 WS=27 RIGHT |
158 Kč | |
| 3 | 47101034114 TOP TRIPLE CLAMP |
3 895 Kč | |
| 4 | 47101032114 BOTTOM TRIPLE CLAMP CPL. |
4 892 Kč | |
| 5 | 49001081000 TAPERED ROLLER BEARING 32004X |
395 Kč | |
| 6 | 0025080256 HH COLLAR SCREW M8X25 TX40 |
33 Kč | |
| 7 | 77201038000 HANDLEBAR CLAMP 28MM |
387 Kč | |
| 8 | 0032100356S AH-COLLAR SCREW M10X35 ISA45 |
36 Kč | |
| 9 | 59401039037 HANDLEB.SUPP. D=28MM H=37MM 05 |
619 Kč | |
| 10 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 11 | 49001086000 COVERING CAP |
77 Kč | |
| 12 | 0770049025 O-RING 49,00X2,50 NBR |
23 Kč | |
| 13 | 46001086000 PROTECTION RING 20,1X39X5 |
158 Kč | |
| 14 | 0770360030 O-RING 36,00X3,00 NBR |
18 Kč | |
| 15 | 0025080206 HH COLLAR SCREW M8X20 TX40 |
33 Kč | |
| 16 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
| 17 | 4710108500028 CLAMP FOR BRAKE HOSE |
159 Kč | |
| 18 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 97 | 4710109400028 FORK PROTECTOR SET 85SX WHITE |
575 Kč | |
| 98 | 00050000931 STEARING HEAD REP. KIT MINI |
940 Kč | |
| 99 | 00050000921 HANDLEBAR SUPPORT KIT D28/H37 |
1 942 Kč |
