Díly pro FRAME

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 7940300140028
FRAME \"794R3\" WHITE
39 760 Kč
2 2500300201033A
REAR FRAME TOP
4 807 Kč
3 25003002020
SUBFRAME L/S
2 183 Kč
4 25003002130
SUBFRAME RIGHT
2 183 Kč
5 0035080206S
SHCS M8X20 TX45
52 Kč
6 79403013000
ENGINE BRACE L/S
355 Kč
7 79403014044
ENGINE BRACE R/S CPL.
576 Kč
8 0035080156S
AH-COLLAR SCREW M8X15 TORX45
23 Kč
9 79007012000
TANK REST RUBBER
153 Kč
10 58111076000
CABLE SUPPORT KHS NR.150-47610
65 Kč
11 0019080306S
COUNTER-SUNK SCREW ISA45 M8X30
33 Kč
12 55007016001
PVC-HOSE 7X10 PER METER
87 Kč
13 50303089000
ANGEL PIECE \'97
50 Kč
14 54310086100
SELF LOCKING NUT M10 CU WS=14
20 Kč
15 59003013000
ENGINEBRAC.SCREW M10X123 WS=13
223 Kč
16 47106003160
QUICK RELEASE RUBBER GROMMET
57 Kč
18 0025080306
HH COLLAR SCREW M8X30 TX40
32 Kč
19 0025060356
HH COLLAR SCREW M6X35 TX30
29 Kč
20 0125060003
WASHER DIN0125-A 6,4
13 Kč
21 79603040000
FOOTREST L/S EXC 2017
858 Kč
22 79603041000
FOOTREST R/S EXC 2017
858 Kč
23 0125100003
WASHER DIN 125 A 10.5
13 Kč
24 79003044000
FOOTREST SPRING R/S 2016
33 Kč
25 54803044000
BOLT FOR FOOT PED 03
203 Kč
26 79003045000
FOOTREST SPRING L/S 2016
33 Kč
27 0094032250
PIN DIN 0094-3.2X25 NIRO
5 Kč
28 79603040033
FOOTREST-SET
1 440 Kč
30 2500309400030
FRAME PROTECTION SET BLACK
393 Kč
31 78105081010
SCREW TORX M5X10
15 Kč
32 54803092060
BUSH F. FRAME PROTECTION 03
73 Kč
33 44011076305
CABLE TIE 300/4,8MM BLACK
10 Kč
34 44011076140
CABLE TIE 140/2,5MM BLACK
10 Kč
35 59001037000
SPECIAL SCREW M8X26 WS=10
53 Kč
36 0934080003
HEXAGON NUT DIN0934-M 8
18 Kč
98 79003053010
CHAIN SLIDING KIT BELOW CPL.16
126 Kč
99 79403096010
SPROCKET COVER KIT
260 Kč

Další schémata

AIR FILTER AIR FILTER DECAL DECAL EXHAUST SYSTEM EXHAUST SYSTEM FRAME FRAME FRONT BRAKE CALIPER FRONT BRAKE CALIPER FRONT BRAKE CONTROL FRONT BRAKE CONTROL FRONT FORK DISASSEMBLED FRONT FORK DISASSEMBLED FRONT FORK, TRIPLE CLAMP FRONT FORK, TRIPLE CLAMP FRONT WHEEL FRONT WHEEL FUEL PUMP FUEL PUMP HANDLEBAR, CONTROLS HANDLEBAR, CONTROLS MASK, FENDERS MASK, FENDERS PRO LEVER LINKING PRO LEVER LINKING REAR BRAKE CALIPER REAR BRAKE CALIPER REAR BRAKE CONTROL REAR BRAKE CONTROL REAR WHEEL REAR WHEEL SEPERATE ENCLOSURE SEPERATE ENCLOSURE SHOCK ABSORBER SHOCK ABSORBER SHOCK ABSORBER DISASSEMBLED SHOCK ABSORBER DISASSEMBLED SWING ARM SWING ARM TANK, SEAT, COVER TANK, SEAT, COVER WIRING HARNESS WIRING HARNESS WP SHIMS FOR SETTING WP SHIMS FOR SETTING

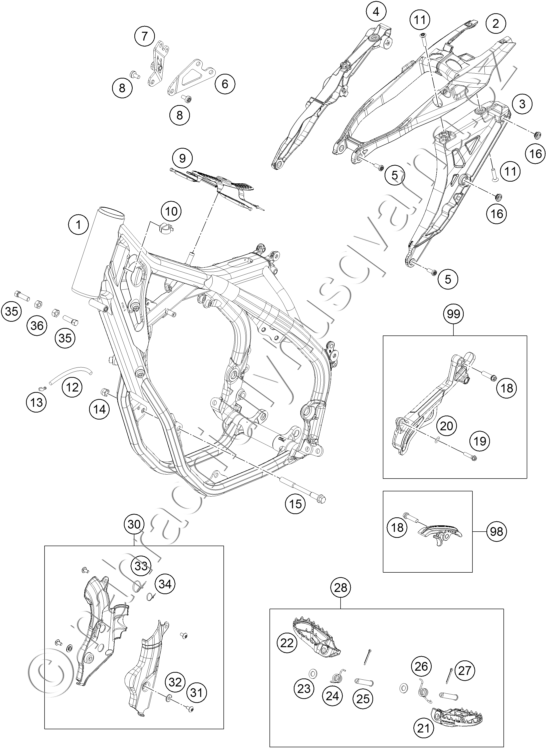

FRAME

Zvětšit schéma FRAME
FRAME
