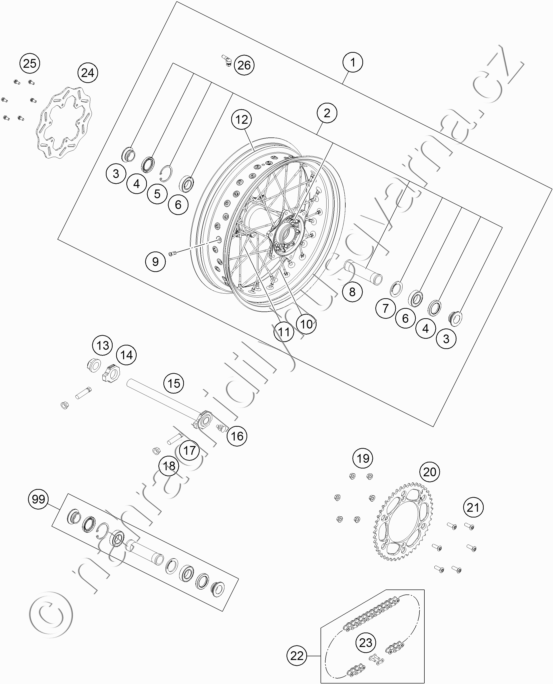

Díly pro REAR WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 2611000104430 REAR WHEEL CPL. 5X17\'\' |
20 795 Kč | |
| 2 | 25010010144 REARHUB CPL. |
5 884 Kč | |
| 3 | 77710016000 DISTANCE BUSHING REAR WHEEL |
494 Kč | |
| 4 | 0760324771 SHAFT SEAL RING 32X47X7 BSL |
61 Kč | |
| 5 | 0472047175 CIRCLIP DIN0472-47X1,75 |
29 Kč | |
| 6 | 0625060058 GR.BALL BEAR.6005 DDU2CG23S6NM |
244 Kč | |
| 7 | 77710015000 DISTANCE RING |
28 Kč | |
| 8 | 77710011000 BEARING DISTANCE TUBE 121,5MM |
323 Kč | |
| 9 | 26110072000 SPOKE NIPPLE M4,5X0,75 |
86 Kč | |
| 10 | 26110071159 SPOKE M4,5X159 - 17\'\' |
94 Kč | |
| 11 | 26110071154 SPOKE M4,5X154 - 17\'\' |
94 Kč | |
| 12 | 2611007000030 RIM REAR 5X17\'\' BLACK |
12 265 Kč | |
| 13 | 61010086000 COLLAR NUT M25X1,5 WS=32 05 |
403 Kč | |
| 14 | 77710084000 CHAIN TENSIONER R/S |
326 Kč | |
| 15 | 77710085044 WHEEL SPINDLE CPL. \'13 |
1 638 Kč | |
| 16 | 50210086000 COVERING CAP SFL16 |
33 Kč | |
| 17 | 50304040100 SCREW M10X1.25X50 WS10 |
65 Kč | |
| 18 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 19 | 06923080003 HEX NUT EN 1661 M8 WS13 |
23 Kč | |
| 20 | 7771015104530 SPROCKET 45-T BLACK |
1 051 Kč | |
| 20 | 7771015104830 SPROCKET 48-T BLACK |
1 051 Kč | |
| 20 | 7771015105030 SPROCKET 50-T BLACK |
1 051 Kč | |
| 20 | 7771015105230 SPROCKET 52-T BLACK |
1 028 Kč | |
| 21 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
| 22 | 50310165118 CHAIN 5/8X1/4\'\' MX |
2 078 Kč | |
| 23 | 50310166000 CONNECTING LINK F. 50310165118 |
103 Kč | |
| 24 | 25010060000 BRAKE DISC REAR D=220MM |
2 518 Kč | |
| 25 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 26 | 26109076000 VALVE FRONT |
639 Kč | |
| 99 | 77710015010 REAR WHEEL REP. KIT |
1 371 Kč |
