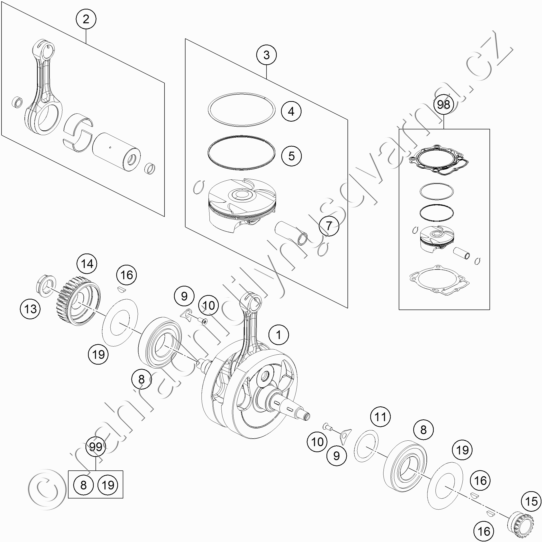

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79430518100 CRANKSHAFT CPL. |
20 054 Kč | |
| 2 | 79430015144 CONROD REPAIR KIT |
8 317 Kč | |
| 3 | 79430507000 I PISTON I CPL. D95MM |
7 717 Kč | |
| 3 | 79430507000 II PISTON II CPL. D95MM |
7 717 Kč | |
| 4 | 78930030000 COMPRESSION RING |
942 Kč | |
| 5 | 78930032000 OIL SCRAPER RING |
942 Kč | |
| 7 | 78930074000 CIRCLIP |
340 Kč | |
| 8 | 79430082000 CYLINDER ROLLER BEARING NJ207 |
1 225 Kč | |
| 9 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 10 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 |
28 Kč | |
| 11 | 56530081000 SHIM WASHER 36X48X0,10 |
28 Kč | |
| 11 | 56530081100 SHIM WASHER 36X48X0,15 |
33 Kč | |
| 11 | 56530081200 SHIM WASHER 36X48X0,20 STEEL |
39 Kč | |
| 11 | 56530081300 SHIM WASHER 36X48X0,30 |
26 Kč | |
| 13 | 78030029200 NUT PRIMARY WHEEL M20X1,5 |
126 Kč | |
| 14 | 79432023031 PRIMARY GEAR 31T |
1 642 Kč | |
| 15 | 78036014200 TIMING GEAR 18T. |
558 Kč | |
| 16 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
| 19 | 79430084000 BEARING SEAL |
132 Kč | |
| 98 | 79430507010 I PISTON KIT I 450 EXC-F |
7 717 Kč | |
| 98 | 79430507010 II PISTON KIT II 450 EXC-F |
7 717 Kč | |
| 99 | 00050002315 CRANKSHAFT REP.KIT 450 SX-F 15 |
2 074 Kč |
