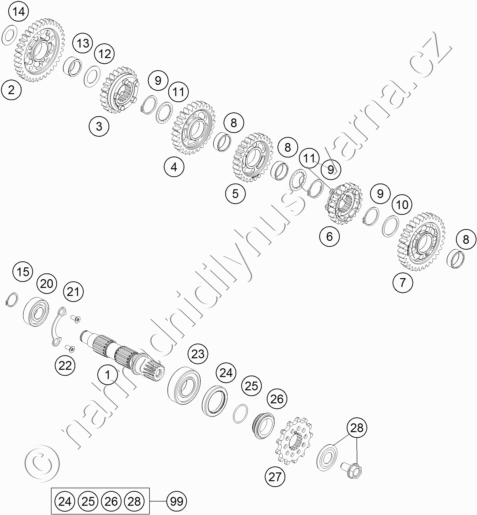

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79433010100 COUNTER SHAFT |
2 894 Kč | |
| 2 | 79433511000 IDLER 1ST GEAR |
1 743 Kč | |
| 3 | 79433515000 SLIDING 5TH GEAR |
1 905 Kč | |
| 4 | 79433513000 IDLER 3RD GEAR |
1 743 Kč | |
| 5 | 79433014100 IDLER GEAR 4TH GEAR |
1 743 Kč | |
| 6 | 79433516100 SLIDING GEAR 6.G. |
1 905 Kč | |
| 7 | 79433512000 IDLER 2ND GEAR |
1 743 Kč | |
| 8 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED |
175 Kč | |
| 9 | 0471250120 CIRCLIP DIN0471-25X1,2 |
18 Kč | |
| 10 | 78033031000 STOP DISK 26 X 32 X 1,5 |
73 Kč | |
| 11 | 78033033000 STOP DISK 23 X 32 X 1,5 |
73 Kč | |
| 12 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 13 | 0405202612 NEEDLE BEARING K 20X26X12 |
323 Kč | |
| 14 | 56033030000 STOP DISC 17,2X30X1 |
158 Kč | |
| 15 | 0471170015 CIRCLIP DIN 0471-17X1, 5 |
21 Kč | |
| 20 | 0625062035 BALL BEARING 6203 JR2 C3 |
215 Kč | |
| 21 | 78033132000 TAB WASHER BEARING COUNT.SHAFT |
84 Kč | |
| 22 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 |
28 Kč | |
| 23 | 49030023000 CYLINDRICAL ROLLER BEARING NJ205 |
1 243 Kč | |
| 24 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR |
65 Kč | |
| 25 | 0770020220 O-RING 25,12X1,78 NBR70 |
17 Kč | |
| 26 | 78133014000 SPACER SLEEVE COUNTER |
414 Kč | |
| 27 | 79233029013 SPROCKET 13T |
360 Kč | |
| 27 | 79233129014 ENGINE SPROCKET 14Z |
360 Kč | |
| 28 | 59033034044 SCREW 10.9+SPRING WASHER |
94 Kč | |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE |
538 Kč |
