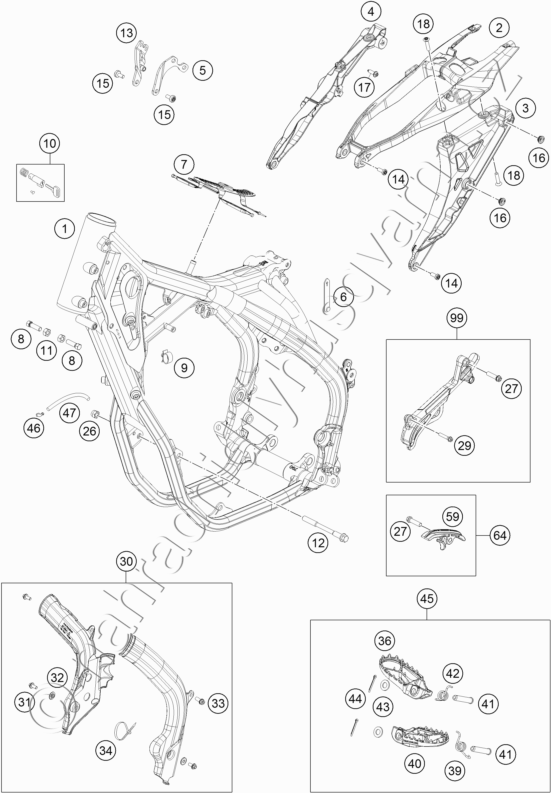

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 2650300110028 FRAME \'\'265Q1\'\' WHITE |
39 760 Kč | |
| 2 | 2500300201033A REAR FRAME TOP |
4 807 Kč | |
| 3 | 25003002020 SUBFRAME L/S |
2 183 Kč | |
| 4 | 25003002130 SUBFRAME RIGHT |
2 183 Kč | |
| 5 | 79403113000 ENGINE BRACE LEFT |
554 Kč | |
| 6 | 60011093075 RUBBER CABLE TIE 75MM 03 |
60 Kč | |
| 7 | 79607012000 TANK REST RUBBER |
153 Kč | |
| 8 | 59001037000 SPECIAL SCREW M8X26 WS=10 |
53 Kč | |
| 9 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 10 | 78103035000 STEERING HEAD LOCK |
773 Kč | |
| 11 | 0934080003 HEXAGON NUT DIN0934-M 8 |
18 Kč | |
| 12 | 59003013000 ENGINEBRAC.SCREW M10X123 WS=13 |
223 Kč | |
| 13 | 79403114044 ENGINE BRACE RIGHT CPL. |
554 Kč | |
| 14 | 0035080206S SHCS M8X20 TX45 |
52 Kč | |
| 15 | 0035080156S AH-COLLAR SCREW M8X15 TORX45 |
23 Kč | |
| 16 | 47106003160 QUICK RELEASE RUBBER GROMMET |
57 Kč | |
| 17 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 |
29 Kč | |
| 18 | 0019080306S COUNTER-SUNK SCREW ISA45 M8X30 |
33 Kč | |
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 |
20 Kč | |
| 27 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 29 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 30 | 7900309400033 FRAME PROTECTION SET BLACK |
863 Kč | |
| 31 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 |
29 Kč | |
| 32 | 54803092060 BUSH F. FRAME PROTECTION 03 |
73 Kč | |
| 33 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 34 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 34 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 36 | 79603041000 FOOTREST R/S EXC 2017 |
858 Kč | |
| 39 | 79003044000 FOOTREST SPRING R/S 2016 |
33 Kč | |
| 40 | 79603040000 FOOTREST L/S EXC 2017 |
858 Kč | |
| 41 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
| 42 | 79003045000 FOOTREST SPRING L/S 2016 |
33 Kč | |
| 43 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 44 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 45 | 79603040033 FOOTREST-SET |
1 440 Kč | |
| 46 | 50303089000 ANGEL PIECE \'97 |
50 Kč | |
| 47 | 55007016001 PVC-HOSE 7X10 PER METER |
87 Kč | |
| 59 | 79003053000 CHAIN SLIDER LOWER PART CPL. |
126 Kč | |
| 64 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 |
126 Kč | |
| 99 | 79403096010 SPROCKET COVER KIT |
260 Kč |
