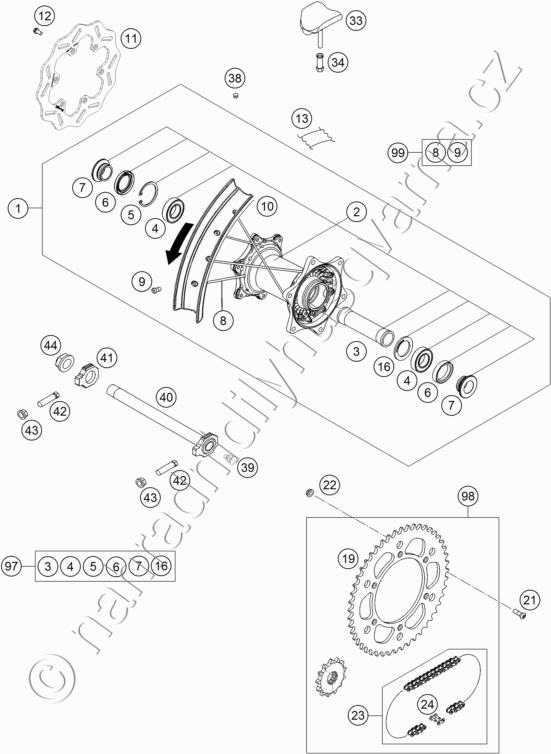

Díly pro REAR WHEEL
Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
---|---|---|---|
1 | 2651000114430 REAR RIM KPL.2,15X18\'\' DID 16 |
17 155 Kč | |
2 | 26510010144 REARHUB CPL. |
6 070 Kč | |
3 | 77710011000 BEARING DISTANCE TUBE 121,5MM |
323 Kč | |
4 | 0625060058 GR.BALL BEAR.6005 DDU2CG23S6NM |
244 Kč | |
5 | 0472047175 CIRCLIP DIN0472-47X1,75 |
29 Kč | |
6 | 0760324771 SHAFT SEAL RING 32X47X7 BSL |
61 Kč | |
7 | 78010016000 BUSHING FOR HUB 08 |
490 Kč | |
8 | 79010071193 SPOKE M4,5X193- 18\'\' 16 |
66 Kč | |
9 | 77109072000 SPOKE NIPPLE M4,5 AL 11 |
52 Kč | |
10 | 8121007010030 RIM 2,15X18\'\' DID AL7 BLACK |
6 136 Kč | |
11 | 25010060000 BRAKE DISC REAR D=220MM |
2 518 Kč | |
12 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
13 | 50310073200 RIM BAND 18\'\' AND 19\'\' |
198 Kč | |
16 | 77710015000 DISTANCE RING |
28 Kč | |
19 | 7771015104530 SPROCKET 45-T BLACK |
1 051 Kč | |
19 | 7771015104830 SPROCKET 48-T BLACK |
1 051 Kč | |
19 | 7771015104930 SPROCKET 49-Z |
1 051 Kč | |
19 | 7771015105030 SPROCKET 50-T BLACK |
1 051 Kč | |
19 | 7771015105130 SPROCKET 51T BLACK |
1 051 Kč | |
19 | 7771015105230 SPROCKET 52-T BLACK |
1 028 Kč | |
21 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
22 | 06923080003 HEX NUT EN 1661 M8 WS13 |
23 Kč | |
23 | 78010167118 CHAIN DID 118 ROLLS |
2 577 Kč | |
24 | 78010166000 CONNECTING LINK F. 78010167118 |
199 Kč | |
33 | 78110090000 RIM LOCK 2,15\'\' |
375 Kč | |
34 | 77110090050 NUT FOR WHEEL HOLDER |
33 Kč | |
38 | 55003135000 PLUG FOR RIM |
29 Kč | |
39 | 50210086000 COVERING CAP SFL16 |
33 Kč | |
40 | 77310085044 WHEEL SPINDLE RE. CPL.265MM 07 |
1 375 Kč | |
41 | 50310084000 CHAIN TENSIONER R/S 2000 |
307 Kč | |
42 | 50304040100 SCREW M10X1.25X50 WS10 |
65 Kč | |
43 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
44 | 50310099000 HEXAGON NUT M20X1,5 \'98 |
138 Kč | |
97 | 78010015010 REAR WHEEL REP. KIT |
1 371 Kč | |
98 | 00050002086 DRIVETRAIN KIT FE 350 14/52 |
3 544 Kč | |
99 | 00050000978 SPOKE KIT REAR |
2 532 Kč |
