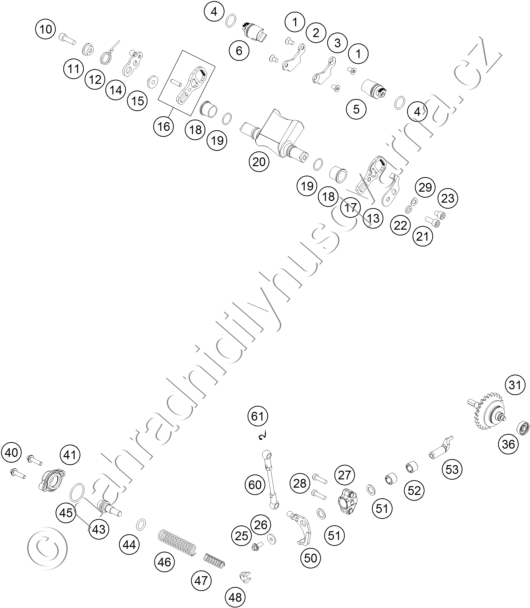

Díly pro EXHAUST CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 2 | 54837362000 RETAINING PLATE 300 R/S 08 |
321 Kč | |
| 3 | 54837363000 RETAINING PLATE 300 L/S 08 |
321 Kč | |
| 4 | 0770160021 O-RING 16,00X2,00 VITON |
25 Kč | |
| 5 | 55437161044 CONTROL ROLLER 300 LEFT CPL. |
937 Kč | |
| 6 | 55437162044 CONTROL ROLLER 300 RIGHT CPL. |
937 Kč | |
| 10 | 0912060203 AH SCREW DIN0912-M 6X20 |
17 Kč | |
| 11 | 54637067000 SPRING SLEEVE |
60 Kč | |
| 12 | 54637066000 OVERLOAD SPRING |
61 Kč | |
| 13 | 54637085300 RETAIN.PLATE CONTROL FLAP \'92 |
69 Kč | |
| 14 | 54637065000 CONTROL LEVER WITH BALL TYPE |
419 Kč | |
| 15 | 54637068100 BUSHING SLEEVE |
126 Kč | |
| 16 | 54837364044 GEAR SEGMENT RIGHT CPL. 08 |
414 Kč | |
| 17 | 54837364050 GEAR SEGMENT 300 L/S 08 |
458 Kč | |
| 18 | 50437023000 BEARING SLEEVE F. CONTROL FLAP |
116 Kč | |
| 19 | 0770150151 O-RING 15,00X1,50 VITON |
23 Kč | |
| 20 | 55637120000 CONTROL FLAP 300 |
1 989 Kč | |
| 21 | 0912060163 AH SCREW DIN0912-M 6X16 |
17 Kč | |
| 22 | 54637056100 WASHER 6,5X11X2 |
21 Kč | |
| 23 | 0912060083 AH SCREW DIN0912-M 6X 8 |
18 Kč | |
| 25 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 |
29 Kč | |
| 26 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 27 | 55437058000 BEARING SUPPORT |
262 Kč | |
| 28 | 0025050256 HH COLLAR SCREW M5X25 ISA30 |
20 Kč | |
| 29 | 0137060003 SPRING WASHER DIN 137 B - 6 |
17 Kč | |
| 31 | 55437050044 CENTRIFUGAL FORCE REGULATOR |
2 588 Kč | |
| 36 | 54637098100 BALL BEARING 626LLBC3/5K |
190 Kč | |
| 40 | 0014050203 HH COLLAR SCREW M 5X20 WS=6 |
55 Kč | |
| 41 | 54637070100 COVER LID 250-380\'98 |
265 Kč | |
| 43 | 54837075000 SPRING GUIDE 250/300 |
255 Kč | |
| 44 | 0770021120 O-RING 12,37X2,62 NBR70 |
21 Kč | |
| 45 | 0770240020 O-RING 24,00X2,00 NBR70 |
18 Kč | |
| 46 | 54837069000 ADJUST. SPRING 2003 |
63 Kč | |
| 47 | 54637072300 AUXILIARY SPRING MID., YELLOW |
41 Kč | |
| 47 | 54837072000 AUXILIARY SPRING SOFT, RED |
36 Kč | |
| 47 | 54837072100 AUXILIARY SPRING HARD, GREEN |
42 Kč | |
| 48 | 54637071200 SPRING INSERT |
214 Kč | |
| 50 | 47237056000 ANGLE LEVER |
767 Kč | |
| 51 | 0988101610 SHIM WASHER DIN988 10X16X1 |
15 Kč | |
| 52 | 0618101410 NEEDLE SLEEVE HK 1010 10X14X10 |
82 Kč | |
| 53 | 55437057100 ADJUSTING LEVER 250/300 |
761 Kč | |
| 60 | 55437095044 CONNECTING ROD CPL. |
326 Kč | |
| 61 | 50237195055 SECURING DIN-71805-S-8 |
29 Kč |
