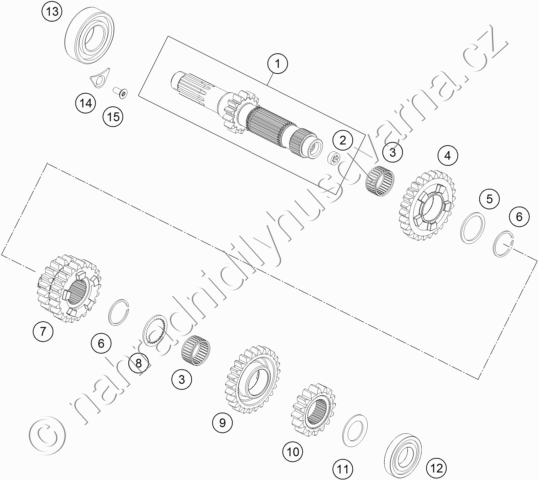

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77233101000 MAIN SHAFT CPL. 14 T. |
2 894 Kč | |
| 2 | 78033001110 BUSHING |
211 Kč | |
| 3 | 0405222613 NEEDLE BEAR. K 22X26X13 TN |
132 Kč | |
| 4 | 54833206100 IDLER GEAR 6.G, Z=26 |
1 682 Kč | |
| 5 | 54833044000 STOP DISC 25X31X1,5 |
73 Kč | |
| 6 | 0417024000 CIRCLIP WS24 |
25 Kč | |
| 7 | 79233103000 SLIDING GEAR 3./4.G. Z=20/22 |
2 160 Kč | |
| 8 | 54833043000 STOP DISC 25X0,8X30X30X7H |
73 Kč | |
| 9 | 54833205000 IDLER GEAR 5.G, Z =25 |
1 682 Kč | |
| 10 | 54833202100 IDLER GEAR 2 ND. GEAR T=16 |
1 120 Kč | |
| 11 | 77233015000 DISK 20,2X32X1,3 |
60 Kč | |
| 12 | 0625160040 GROOVED BALL BEAR. TM 16004 C3 |
310 Kč | |
| 13 | 0625062054 BALL BEARING 6205 C3 NTN |
292 Kč | |
| 14 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 15 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 |
28 Kč |
