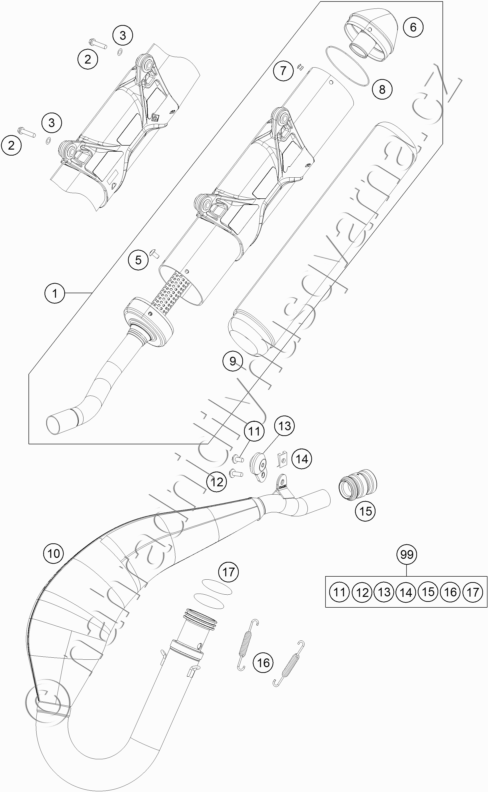

Díly pro EXHAUST SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50405083000 SILENCER 125 EXC |
5 128 Kč | |
| 2 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 3 | 50233041000 PAIR OF WASHERS M 6 NORDLOCK |
39 Kč | |
| 5 | 78105081010 SCREW TORX M5X10 |
15 Kč | |
| 6 | 50305083260 END CAP CPL. |
2 128 Kč | |
| 7 | 0011480800 DUMMY RIVET 4,8X 8 NIRO |
39 Kč | |
| 8 | 0770740015 O-RING 74,00X1,50 FKM 75SH |
58 Kč | |
| 9 | 54805078265 ROCK WOOL 265G |
882 Kč | |
| 10 | 50405007100 EXHAUST PIPE |
8 014 Kč | |
| 11 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 12 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 13 | 50305012000 SWINGELEMENT FOR EXHAUST PIPE |
257 Kč | |
| 14 | 54603048100 CLIP NUT M6 |
87 Kč | |
| 15 | 54605057000 RUBBER SLEEVE D=21MM/23MM \'93 |
467 Kč | |
| 16 | 50305016000 TEN.SPRING L=62MM EY.MOVEABLE |
98 Kč | |
| 17 | 0770380030 O-RING 38,00X3,00 VITON |
58 Kč | |
| 99 | 00050000811 EXHAUST HARDWARE KIT 11-14 |
1 280 Kč |
