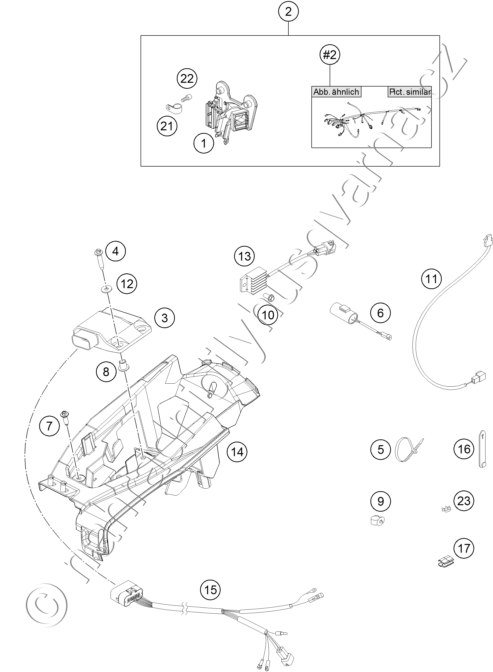

Díly pro WIRING HARNESS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77711083000 SUPPORT BRACKET |
430 Kč | |
| 2 | 50311175000 WIRING HARNESS 125 EXC CPL. 14 |
2 486 Kč | |
| 3 | 50439231000 ELECTRONIC BOX 125 18 |
6 186 Kč | |
| 4 | 0017060305 SPECIAL SCREW K60X30 WS=6 |
21 Kč | |
| 5 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 5 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 5 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 6 | 50311035000 CONDENSATOR 2200MF ADP-48 2000 |
2 005 Kč | |
| 7 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 |
34 Kč | |
| 8 | 60308006000 COLLAR BUSHING 6,2X9,2X15X12,5 |
53 Kč | |
| 9 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 10 | 0023060123 COLLAR SCREW M6X12 TX |
28 Kč | |
| 11 | 50311050100 BRAKE LIGHT SWITCH FRONT 2002 |
1 187 Kč | |
| 12 | 0021050003 WASHER DIN 9021 A - 5.3 |
17 Kč | |
| 13 | 80011034000 VOLTAGE REGULATOR 04 |
1 678 Kč | |
| 14 | 25011055100 BATTERY BOX |
607 Kč | |
| 15 | 54839032200 WIRING HARNESS FOR CDI 2-ST.07 |
1 294 Kč | |
| 16 | 60011093075 RUBBER CABLE TIE 75MM 03 |
60 Kč | |
| 17 | 54813026000 CABLE SUPPORT 10/6MM 06 |
29 Kč | |
| 21 | 57013070000 PVC-CLAMP 7/16\'\' HEYCO 3377 |
29 Kč | |
| 22 | 0912050083 SHCS DIN 912 M5X8 |
17 Kč | |
| 23 | 57013072000 WIRING HOLDER 12MM |
50 Kč | |
| 23 | 57013072100 WIRING HOLDER 16MM |
23 Kč |
