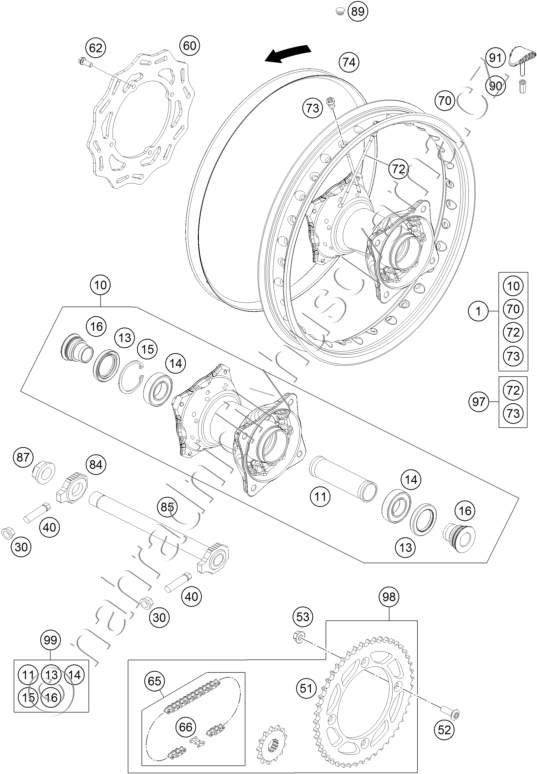

Díly pro REAR WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 2351000144430 REAR WHEEL CPL. 14\'\' 17 |
16 900 Kč | |
| 10 | 70010010044 REAR WHEEL HUB CPL. 12 |
7 198 Kč | |
| 11 | 70010011000 BEAR.SPACER TUBE ´12 |
453 Kč | |
| 13 | 0760324771 SHAFT SEAL RING 32X47X7 BSL |
61 Kč | |
| 14 | 0625060058 GR.BALL BEAR.6005 DDU2CG23S6NM |
244 Kč | |
| 15 | 0472047175 CIRCLIP DIN0472-47X1,75 |
29 Kč | |
| 16 | 78010016000 BUSHING FOR HUB 08 |
490 Kč | |
| 30 | 46030045000 FLANGED NUT M8 WS10 |
87 Kč | |
| 40 | 50203030090 HH SCREW M8X40 WS=10 |
55 Kč | |
| 51 | 47010051044 REAR SPROCKET 44-T 85 SX 03 |
1 152 Kč | |
| 51 | 47010051045 REAR SPROCKET 45-T 85 SX 03 |
1 152 Kč | |
| 51 | 47010051046 REAR SPROCKET 46-T 85 SX 03 |
1 152 Kč | |
| 51 | 47010051047 REAR SPROCKET 47-T 85 SX 03 |
1 152 Kč | |
| 51 | 47010051048 REAR SPROCKET 48-T 85 SX 03 |
1 152 Kč | |
| 51 | 47010051049 REAR SPROCKET 49-T 85 SX 03 |
1 152 Kč | |
| 51 | 47010051050 REAR SPROCKET 50-T 85 SX 03 |
1 152 Kč | |
| 51 | 47010051051 REAR SPROCKET 51-T 85 SX 06 |
1 152 Kč | |
| 52 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
| 53 | 06923080003 HEX NUT EN 1661 M8 WS13 |
23 Kč | |
| 60 | 23610060000 REAR DISC D=210MM |
2 197 Kč | |
| 62 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 |
31 Kč | |
| 65 | 47010165124 CHAIN 124 ROLLS 85 SX |
2 280 Kč | |
| 66 | 47010166000 CONNECTING LINK 85 SX |
129 Kč | |
| 70 | 2351007020030 RIM REAR 14X1,60 BLACK |
4 312 Kč | |
| 72 | 47110071147 SPOKE M4,5X147-14\'\' |
60 Kč | |
| 73 | 77109072000 SPOKE NIPPLE M4,5 AL 11 |
52 Kč | |
| 74 | 47010073000 RIM BAND 85 SX 14\'\' 2003 |
153 Kč | |
| 84 | 70010084000 CHAIN TENSIONER R/S 12 |
305 Kč | |
| 85 | 70010085044 WHEEL SPINDLE REAR CPL. 12 |
1 375 Kč | |
| 87 | 50310099000 HEXAGON NUT M20X1,5 \'98 |
138 Kč | |
| 89 | 55003135000 PLUG FOR RIM |
29 Kč | |
| 90 | 77110090050 NUT FOR WHEEL HOLDER |
33 Kč | |
| 91 | 78109090000 RIM LOCK 1,60\'\' |
375 Kč | |
| 97 | 00050000971 SPOKE KIT REAR 85 TC 14\'\' |
2 532 Kč | |
| 98 | 00050002002 DRIVETRAIN KIT 85 SX |
3 186 Kč | |
| 99 | 70010015000 REAR WHEEL REP. KIT |
1 371 Kč |
