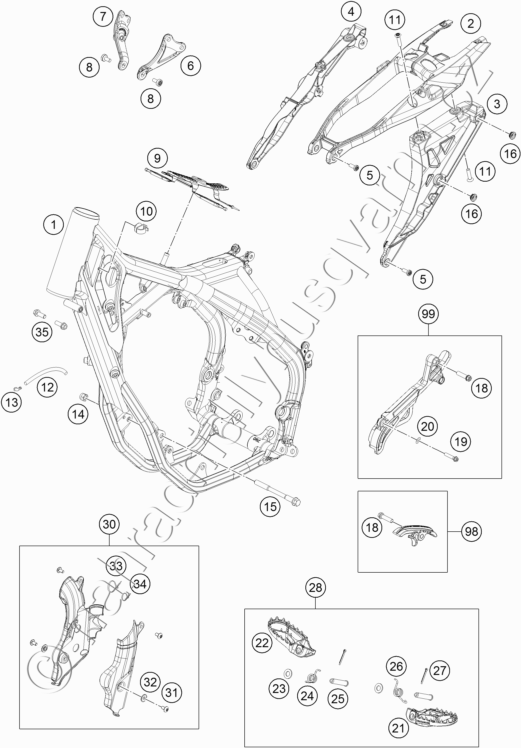

Díly pro FRAME
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7900300140028 FRAME \"790R3\" WHITE |
39 760 Kč | |
| 2 | 2500300201033A REAR FRAME TOP |
4 807 Kč | |
| 3 | 25003002020 SUBFRAME L/S |
2 183 Kč | |
| 4 | 25003002130 SUBFRAME RIGHT |
2 183 Kč | |
| 5 | 0035080206S SHCS M8X20 TX45 |
52 Kč | |
| 6 | 79003013100 ENGINE BRACE LEFT |
639 Kč | |
| 7 | 79003014200 ENGINE BRACE R/S |
639 Kč | |
| 9 | 79007012000 TANK REST RUBBER |
153 Kč | |
| 10 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 11 | 0019080306S COUNTER-SUNK SCREW ISA45 M8X30 |
33 Kč | |
| 12 | 55007016001 PVC-HOSE 7X10 PER METER |
87 Kč | |
| 13 | 50303089000 ANGEL PIECE \'97 |
50 Kč | |
| 14 | 54310086100 SELF LOCKING NUT M10 CU WS=14 |
20 Kč | |
| 15 | 77203014000 ENGINE BRAC.SCR. M10X115 |
126 Kč | |
| 16 | 47106003160 QUICK RELEASE RUBBER GROMMET |
57 Kč | |
| 18 | 0025080306 HH COLLAR SCREW M8X30 TX40 |
32 Kč | |
| 19 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 20 | 0125060003 WASHER DIN0125-A 6,4 |
13 Kč | |
| 21 | 79003040000 FOOTREST L/S 2016 |
837 Kč | |
| 22 | 79003041000 FOOTREST R/S 2016 |
837 Kč | |
| 23 | 0125100003 WASHER DIN 125 A 10.5 |
13 Kč | |
| 24 | 79003044000 FOOTREST SPRING R/S 2016 |
33 Kč | |
| 25 | 54803044000 BOLT FOR FOOT PED 03 |
203 Kč | |
| 26 | 79003045000 FOOTREST SPRING L/S 2016 |
33 Kč | |
| 27 | 0094032250 PIN DIN 0094-3.2X25 NIRO |
5 Kč | |
| 28 | 79003040033 FOOT PEGS SET CPL. 2016 |
1 440 Kč | |
| 30 | 2500309400030 FRAME PROTECTION SET BLACK |
393 Kč | |
| 31 | 78105081010 SCREW TORX M5X10 |
15 Kč | |
| 32 | 54803092060 BUSH F. FRAME PROTECTION 03 |
73 Kč | |
| 33 | 44011076305 CABLE TIE 300/4,8MM BLACK |
10 Kč | |
| 34 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 35 | 0025080166S HH COLLAR SCREW M8X16 TX40 SL |
33 Kč | |
| 98 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 |
126 Kč | |
| 99 | 79003096010 SPROCKET COVER KIT |
318 Kč |
