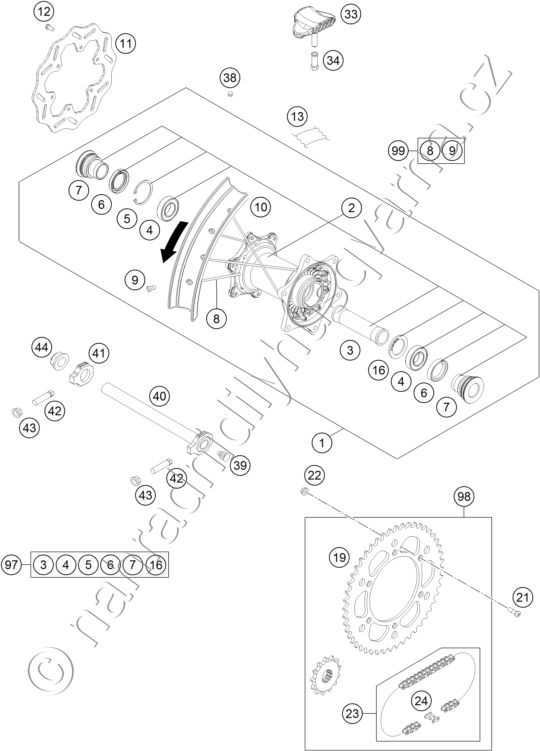

Díly pro REAR WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 2501000124430 REAR WHEEL CPL.2,15X19\'\' DID 16 |
17 518 Kč | |
| 2 | 25010010144 REARHUB CPL. |
5 884 Kč | |
| 3 | 77710011000 BEARING DISTANCE TUBE 121,5MM |
323 Kč | |
| 4 | 0625060058 GR.BALL BEAR.6005 DDU2CG23S6NM |
244 Kč | |
| 5 | 0472047175 CIRCLIP DIN0472-47X1,75 |
29 Kč | |
| 6 | 0760324771 SHAFT SEAL RING 32X47X7 BSL |
61 Kč | |
| 7 | 77710016000 DISTANCE BUSHING REAR WHEEL |
494 Kč | |
| 8 | 79010071205 SPOKE M4,5X205-19\'\' 16 |
66 Kč | |
| 9 | 77109072000 SPOKE NIPPLE M4,5 AL 11 |
52 Kč | |
| 10 | 2501007000030 RIM 2,15X19\'\' DID |
6 136 Kč | |
| 11 | 25010060000 BRAKE DISC REAR D=220MM |
2 518 Kč | |
| 12 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 13 | 50310073200 RIM BAND 18\'\' AND 19\'\' |
198 Kč | |
| 16 | 77710015000 DISTANCE RING |
28 Kč | |
| 19 | 7771015104830 SPROCKET 48-T BLACK |
1 051 Kč | |
| 19 | 7771015105030 SPROCKET 50-T BLACK |
1 051 Kč | |
| 19 | 7771015105130 SPROCKET 51T BLACK |
1 051 Kč | |
| 19 | 7771015105230 SPROCKET 52-T BLACK |
1 028 Kč | |
| 21 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 |
33 Kč | |
| 22 | 06923080003 HEX NUT EN 1661 M8 WS13 |
23 Kč | |
| 23 | 50310165118 CHAIN 5/8X1/4\'\' MX |
2 078 Kč | |
| 24 | 50310166000 CONNECTING LINK F. 50310165118 |
103 Kč | |
| 33 | 78110090000 RIM LOCK 2,15\'\' |
375 Kč | |
| 34 | 77110090050 NUT FOR WHEEL HOLDER |
33 Kč | |
| 38 | 55003135000 PLUG FOR RIM |
29 Kč | |
| 39 | 50210086000 COVERING CAP SFL16 |
33 Kč | |
| 40 | 77710085044 WHEEL SPINDLE CPL. \'13 |
1 638 Kč | |
| 41 | 77710084000 CHAIN TENSIONER R/S |
326 Kč | |
| 42 | 50304040100 SCREW M10X1.25X50 WS10 |
65 Kč | |
| 43 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 |
36 Kč | |
| 44 | 61010086000 COLLAR NUT M25X1,5 WS=32 05 |
403 Kč | |
| 97 | 77710015010 REAR WHEEL REP. KIT |
1 371 Kč | |
| 98 | 00050002082 DRIVETRAIN KIT HQV 14T/51T |
3 186 Kč | |
| 99 | 00050000979 SPOKE KIT REAR 19\'\' |
2 532 Kč |
