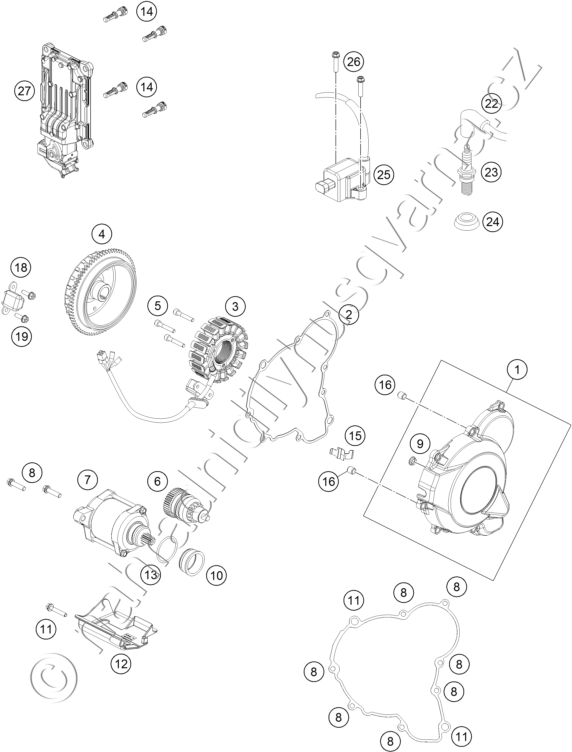

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55430702144KA IGNITION COVER CPL. |
1 876 Kč | |
| 2 | 55430040100 GASKET IGNITION COVER |
257 Kč | |
| 3 | 55439104000 STATOR |
4 425 Kč | |
| 4 | 55439105000 ROTOR |
6 410 Kč | |
| 5 | 0912050303 AH SCREW DIN0912-M 5X30 |
36 Kč | |
| 6 | 55440126000 BENDIX |
2 348 Kč | |
| 7 | 55440001000 STARTER ENGINE |
4 639 Kč | |
| 8 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 9 | 55140030100 COLLAR BUSHING |
39 Kč | |
| 10 | 55440012000 BEARING BUSH |
158 Kč | |
| 11 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 12 | 55440040044 PROTECTION CAP STARTER ENGINE |
318 Kč | |
| 13 | 0770021260 O-RING 34,59X2,62 |
25 Kč | |
| 14 | 55641030000 HOLDER CONTROL UNIT |
61 Kč | |
| 15 | 55439140220 HOLDING PLATE GENERATOR CABLE |
318 Kč | |
| 16 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 18 | 59039034000 PULSE GENERATOR KOKUSAN 4K3-A/B |
1 763 Kč | |
| 19 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 22 | 55639007000 IGNITION WIRE |
1 052 Kč | |
| 23 | 55439193000 SPARK PLUG |
639 Kč | |
| 24 | 50231012000 SEALING CUP FOR SPARK PLUG |
65 Kč | |
| 25 | 55639006000 IGINITION COIL |
1 601 Kč | |
| 27 | 55641031000 CONTROL DEVICE EFI |
8 693 Kč |
