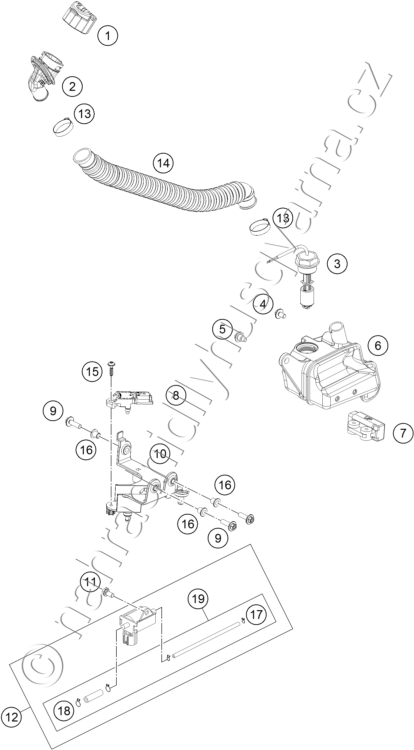

Díly pro LUBRICATING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55638070033 OILFILLERCAP CPL. |
446 Kč | |
| 2 | 55638061020 FILLER PLUG OIL TANK |
158 Kč | |
| 3 | 55638062000 OIL LEVEL SENSOR |
2 083 Kč | |
| 4 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 5 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 6 | 55638061100 OIL TANK |
1 440 Kč | |
| 7 | 61041088000 ROLLOVER SENSOR 05 |
1 035 Kč | |
| 8 | 55641075000 CRANKCASE PRESURE SENSOR CCP |
3 685 Kč | |
| 9 | 0024060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 10 | 55638061040 OIL PUMP SUPPORT |
639 Kč | |
| 11 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 12 | 55638064000 OIL PUMP |
3 108 Kč | |
| 13 | 00050271708 VARIABLE ONE-EAR CLAMP 27,1MM |
65 Kč | |
| 14 | 55638065100 HOSE |
478 Kč | |
| 15 | 0081050181 SCREW FOR PLASTIC K50X18 T20 |
20 Kč | |
| 16 | 45239060050 COLLAR BUSHING 6,3X8X13X9,5 |
77 Kč | |
| 17 | 55538087000 CLAMP 2 |
126 Kč | |
| 18 | 55538086000 CLAMP 1 |
126 Kč | |
| 19 | 55538083044 TUBE SET, OIL TANK |
607 Kč |
