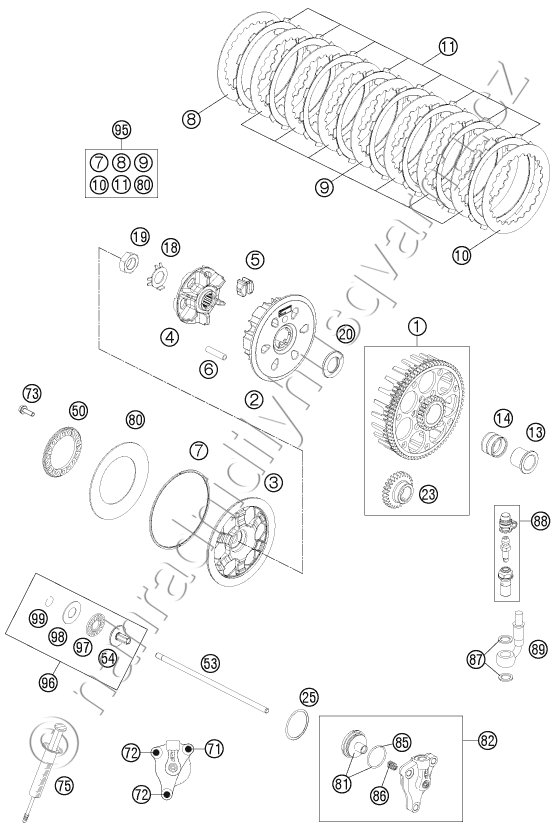

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54832024044 CLUTCH CAGE INCL. PRIM. WHEEL |
7 324 Kč | |
| 2 | 54832002100 INNER CLUTCH HUB |
2 375 Kč | |
| 3 | 78132003100 CLUTCH PRESSURE CAP |
741 Kč | |
| 4 | 54832002111 CLUTCH HUB |
1 657 Kč | |
| 5 | 78132025100 DAMPING RUBBER |
50 Kč | |
| 6 | 78132004000 SLEEVE 7,5X33.4 |
50 Kč | |
| 7 | 78132013000 WASHER 112X118X1.5 |
158 Kč | |
| 8 | 59032010100 INTERMEDIATE DISC 1MM 2002 |
146 Kč | |
| 9 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 |
183 Kč | |
| 10 | 78932010000 INTERMEDIATE DISC 1MM |
204 Kč | |
| 11 | 54832011100 LINING DISC 1,95 MM |
441 Kč | |
| 13 | 54832015100 INNER RING 21.65X26X24.5 |
602 Kč | |
| 14 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE |
321 Kč | |
| 18 | 78132018000 TAB WASHER |
45 Kč | |
| 19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. |
102 Kč | |
| 20 | 54832009000 WASHER 21.7 X 37 X 2.5 |
307 Kč | |
| 23 | 54832000026 PRIMARY GEAR 26T 2003 |
1 452 Kč | |
| 25 | 0770300015 O-RING 30,00X1,50 NBR 70 |
33 Kč | |
| 50 | 54832006000 SPRING RING |
732 Kč | |
| 53 | 54832054100 PUSH ROD |
191 Kč | |
| 54 | 78032057000 PRESSURE PIECE |
340 Kč | |
| 71 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 72 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 73 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH |
937 Kč | |
| 80 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I |
413 Kč | |
| 81 | 54832066000 PISTON CPL. |
940 Kč | |
| 82 | 54832061044 OUTPUT CYLINDER CPL. 06 |
2 251 Kč | |
| 85 | 54832067000 O-RING |
28 Kč | |
| 86 | 54832069000 PRESSURE SPRING |
257 Kč | |
| 87 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 88 | 62513020000 BLEEDER SCREW CPL. 05 |
445 Kč | |
| 89 | 54832063000 CLUTCH PIPE 06 |
1 761 Kč | |
| 95 | 54832011110 CLUTCH KIT 250/300 13-15 |
3 760 Kč | |
| 96 | 78032057044 PRESSURE PIECE CPL. 08 |
512 Kč | |
| 97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 |
150 Kč | |
| 98 | 54637098200 AXIAL WASHER AS1226 12X26X1 |
57 Kč | |
| 99 | 0993012000 CIRCLIP DIN7993-RW12 |
5 Kč |
