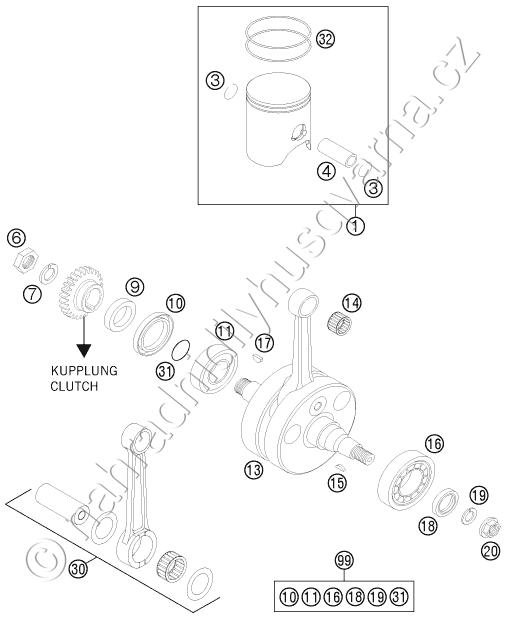

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54830007300 I PISTON I 250 2011 |
4 939 Kč | |
| 1 | 54830007300 II PISTON II 250 2011 |
4 939 Kč | |
| 3 | 54030074000 WIRE LOCK RING C18X1,5 |
65 Kč | |
| 4 | 54830233000 PISTON PIN |
759 Kč | |
| 6 | 54630029000 HEX.NUT L/SH M18X1,5 |
127 Kč | |
| 7 | 58132072000 LOCK WASHER VSK 18 |
42 Kč | |
| 9 | 54830016000 SPACER SLEEVE 28X38X10 03 |
289 Kč | |
| 10 | 0760385273 SHAFT SEAL RING 38X52X7BTSL |
310 Kč | |
| 11 | 0625623204 BALL BEARING 32X65X17 NTN |
969 Kč | |
| 13 | 54830118300 CRANKSHAFT CPL. 250 EXC |
12 347 Kč | |
| 14 | 54430034000 NEEDLE BEARING KBK 18X22X20 |
316 Kč | |
| 15 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 |
20 Kč | |
| 16 | 56530123200 CYLIND.ROL.BEAR. NJ207ET2XCS42 |
1 950 Kč | |
| 17 | 6946005 WOODRUFF KEY 5X6,5 HARDED |
33 Kč | |
| 18 | 0760253570 SHAFT SEAL RING 25X35X7 BTSL |
283 Kč | |
| 19 | 50230029012 LOCKING RING VSK 12 |
25 Kč | |
| 20 | 49030021000 COLLAR NUT M12X1 R/S |
100 Kč | |
| 30 | 54830015244 CON.ROD REP.SET 250/300 |
6 915 Kč | |
| 31 | 0770250015 O-RING 25,00X1,50 NBR 70 |
5 Kč | |
| 32 | 54830232000 TRAPEZOID RING 250 66,4 MM |
929 Kč | |
| 99 | 00050002301 CRANKSHAF REP. KIT 250-300 |
3 172 Kč |
