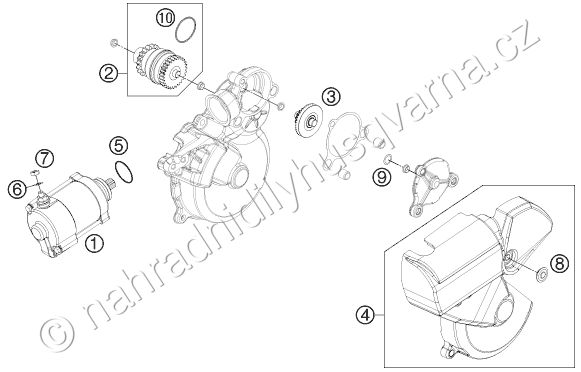

Díly pro ELECTRIC STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 55140001100 STARTER MORIC |
7 005 Kč | |
| 2 | 55140026100 BENDIX |
2 348 Kč | |
| 3 | 55140022100 CROWN WHEEL E-STARTER |
1 487 Kč | |
| 4 | 55140540044 STARTER DRIVE COVER CPL. |
578 Kč | |
| 5 | 0770250030 O-RING 25,00X3,00 NBR 70 |
17 Kč | |
| 6 | 0125060003 WASHER DIN0125-A 6,4 |
13 Kč | |
| 7 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 8 | 79608052000 BUSH 6X11X16X5 MM |
52 Kč | |
| 9 | 0988081401 THRUST WASHER 8X14X0,1 |
15 Kč | |
| 9 | 0988081402 THRUST WASHER 8X14X0,2 |
15 Kč | |
| 9 | 0988081403 THRUST WASHER 8X14X0,3 |
15 Kč | |
| 9 | 0988081405 THRUST WASHER 8X14X0,5 |
15 Kč | |
| 10 | 55140027000 BENDIXSPRING |
166 Kč |
