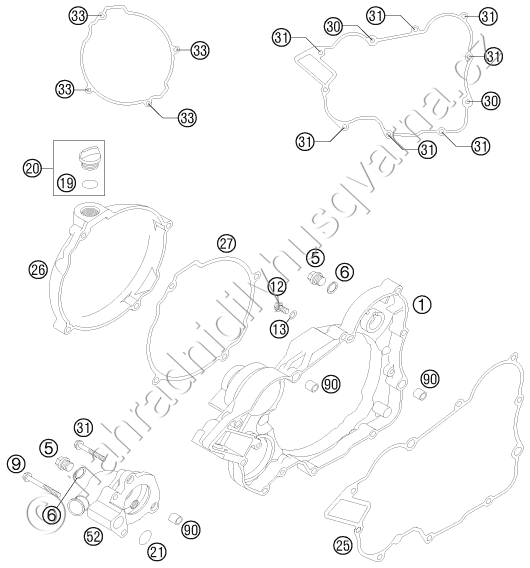

Díly pro CLUTCH COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 5033000114415 CLUTCH COVER CPL. 125/200 09 |
3 866 Kč | |
| 5 | 0910100003 PLUG DIN0910-M 10X1 |
87 Kč | |
| 6 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 9 | 0025060506 HH COLLAR SCREW M6X50 TX30 |
29 Kč | |
| 12 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 13 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč | |
| 19 | 0770191015 O-RING 19,00X3,00 NBR |
15 Kč | |
| 20 | 79430020033 OIL FILLER CAP M24X3 WITH O-R |
89 Kč | |
| 21 | 0770160030 O-RING 16,00X3,00 NBR 70 |
17 Kč | |
| 25 | 50330025000 CLUTCH COVER GASKET 0,5MM |
199 Kč | |
| 26 | 50330626000KA CLUTCH OUTSIDE COVER \'\'HQV\'\' |
1 426 Kč | |
| 27 | 50330027000 CLUTCH OUTS.COVER GASKET 1MM |
217 Kč | |
| 30 | 0025060406 HH COLLAR SCREW M6X40 TX30 |
29 Kč | |
| 31 | 0025060356 HH COLLAR SCREW M6X35 TX30 |
29 Kč | |
| 33 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 52 | 50335052033 WATERPUMP COVER 125/200 98 |
1 780 Kč | |
| 90 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč |
