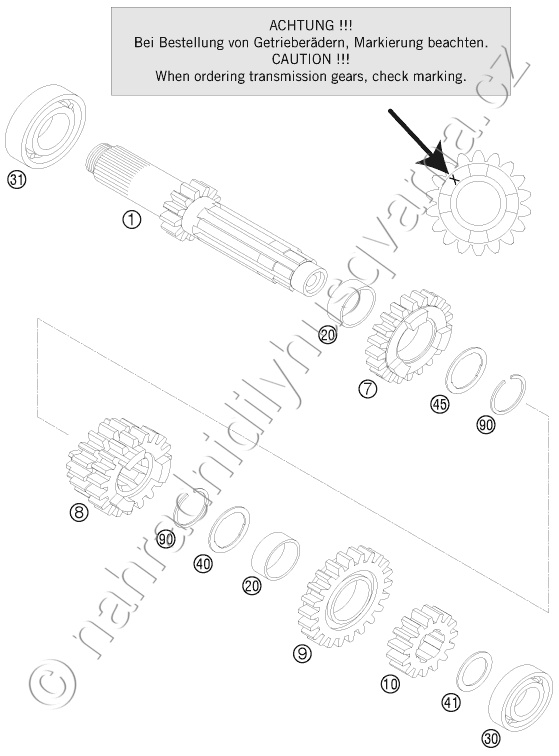

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 50333001044 MAIN SHAFT CPL. 13-T \'98 |
3 577 Kč | |
| 7 | 50333007100 IDLE GEAR 5.G. 5S19H SX 06 |
1 682 Kč | |
| 8 | 50333008200 SLIDING GEAR 3./4. G. SX 06 |
2 588 Kč | |
| 9 | 50333009500 IDLE GEAR 6TH G. 6S22H SX 06 |
1 682 Kč | |
| 10 | 50333010100 SOLID GEAR 2ND G.15-T\'\'2S15\'\' 03 |
1 538 Kč | |
| 20 | 50333020000 IDLER GEAR BUSH. 22X25X11,1 A |
578 Kč | |
| 30 | 0625160031 GROOVED BALL B. 16003 C4 J1 |
397 Kč | |
| 31 | 0625060042 BALL BEARING 6004 TN9 C4 |
283 Kč | |
| 40 | 50333040000 STOP DISC 22,2X27,8X1 A |
73 Kč | |
| 41 | 50333041000 STOP DISC 17,2X26X1 B |
45 Kč | |
| 45 | 50333045000 STOP DISK 22,2X27,8X1 |
61 Kč | |
| 90 | 50133090000 LOCK RING 22X1,2 |
28 Kč |
