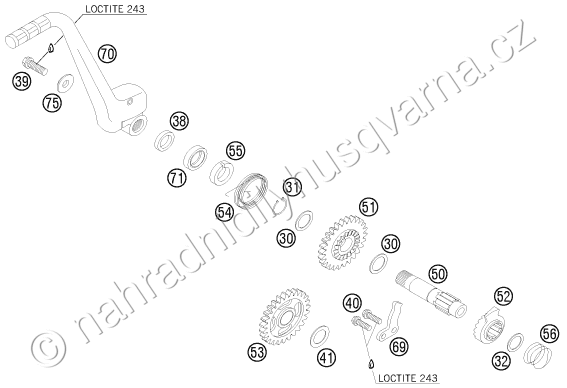

Díly pro KICK STARTER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 30 | 50333030000 STOP DISK 17,2X24X1 |
37 Kč | |
| 31 | 0471170010 CIRCLIP DIN0471-17X1 |
17 Kč | |
| 32 | 0988162210 THRUST WASHER DIN0988-16X22X1 |
18 Kč | |
| 38 | 50333038100 SPACER BUSHING 16X23X26X6,1 |
130 Kč | |
| 39 | 0025080206 HH COLLAR SCREW M8X20 TX40 |
33 Kč | |
| 40 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 41 | 50333041000 STOP DISC 17,2X26X1 B |
45 Kč | |
| 50 | 50333050000 KICKSTARTER SHAFT 125/200\'98 |
1 046 Kč | |
| 51 | 50333051026 KICKSTART.GEAR 26-T 125/200\'98 |
1 314 Kč | |
| 52 | 50333052000 KICKSTARTER RATCHET |
1 346 Kč | |
| 53 | 50333053127 INTERMEDIATE GEAR 27-T 04 |
1 573 Kč | |
| 54 | 50333054000 KICKSTARTER SPRING 2,6MM \'98 |
146 Kč | |
| 55 | 50333055000 DRIVING HUB 125/200\'98 |
50 Kč | |
| 56 | 50333056000 SPRING 1,4MM \'98 |
36 Kč | |
| 69 | 50333069000 STOP MET.SHEET 4MM 125/200\'98 |
252 Kč | |
| 70 | 50333070244 KICK STARTER CPL. |
2 292 Kč | |
| 71 | 0760172870 SHAFT SEAL RING 17X28X7 B |
58 Kč | |
| 75 | 50333075000 WASHER 8,2X22X4,5 \'98 |
126 Kč |
