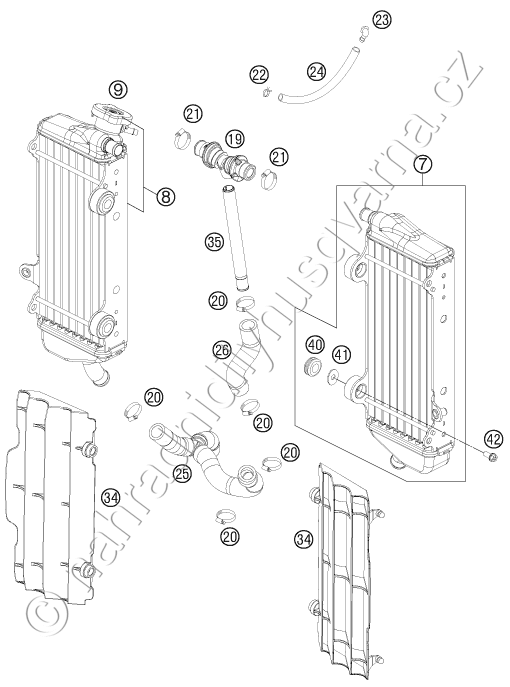

Díly pro COOLING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 7 | 77035007500 RADIATOR L/S \'\'15623U\'\' |
6 268 Kč | |
| 8 | 77235008200 RADIATOR R/S \'\'15637U\'\' |
6 268 Kč | |
| 9 | 77335016000 RADIATOR CAP SMALL 1,8 BAR |
283 Kč | |
| 19 | 77235071044 Y-CONNECTOR CPL. |
837 Kč | |
| 20 | 10001020300 HOSE CLAMP 18-29 |
52 Kč | |
| 21 | 42013037400 HOSE CLAMP NORMA 14/24 |
56 Kč | |
| 22 | 59007017000 CLAMP YDNAC 10096F (9,6MM) |
20 Kč | |
| 23 | 50303089000 ANGEL PIECE \'97 |
50 Kč | |
| 24 | 50335030001 PVC-HOSE 6X9 |
92 Kč | |
| 25 | 77235025033 RADIATOR HOSE CPL.+Y-CONNECT. |
1 009 Kč | |
| 26 | 77235024000 PREFORMED HOSE ENG. Y-CONNECT. |
143 Kč | |
| 34 | 7733503400030 RADIATOR PROTECTION BLACK 07 |
209 Kč | |
| 35 | 77235073000 HOSE CONNECTOR L=172,5 |
379 Kč | |
| 40 | 41001052000 RUBBER SLEEVE D=12MM |
57 Kč | |
| 41 | 77335001000 WASHER FOR RADIATOR 08 |
34 Kč | |
| 42 | 0023060123 COLLAR SCREW M6X12 TX |
28 Kč |
