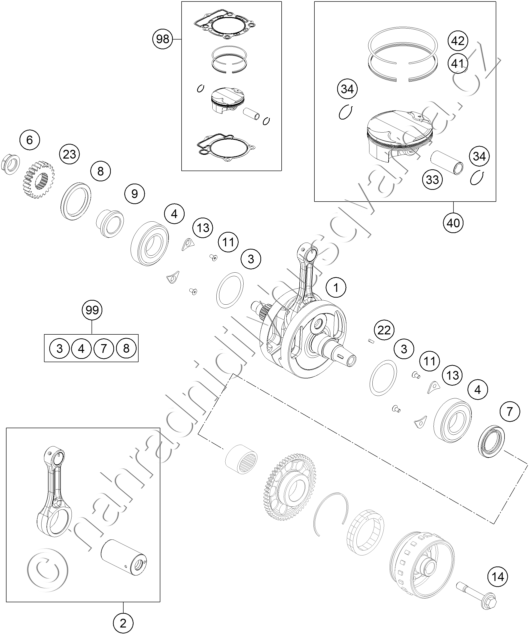

Díly pro CRANKSHAFT, PISTON
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 77830018100 CRANKSHAFT CPL. |
20 896 Kč | |
| 2 | 77830015144 CONNECTING ROD REPAIR SET |
8 317 Kč | |
| 3 | 0988324510 THRUST WASHER 988ST 32X0,1 |
15 Kč | |
| 3 | 0988324515 THRUST WASHER 988ST 32X0,15 |
15 Kč | |
| 3 | 0988324530 THRUST WASHER 988ST 32X0,30 |
15 Kč | |
| 4 | 77330082200 BEARING NJ 206 ECP/HN3C4HVA624 |
1 006 Kč | |
| 6 | 77230029000 NUT PRIMARY WHEEL |
738 Kč | |
| 7 | 0760304772 SH.SEAL RING 30X47X7 BSL VITON |
294 Kč | |
| 8 | 0760405560 SHAFT SEAL RING A40x55x6 VITON |
206 Kč | |
| 9 | 77232022000 SPACER BUSHING PRIMARY GEAR |
570 Kč | |
| 11 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 13 | 75030085000 RETAINING PLATE F. CS BEARING |
86 Kč | |
| 14 | 77339010100 FLYWHEEL SCREW |
87 Kč | |
| 22 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
| 23 | 77232023024 PRIMARY GEAR 24T. |
1 642 Kč | |
| 33 | 77230233200 PISTON PIN 350 |
1 163 Kč | |
| 34 | 77230274000 CIRCLIP |
437 Kč | |
| 40 | 77230207100 I PISTON CPL. 350 I |
8 070 Kč | |
| 40 | 77230207100 II PISTON CPL. 350 II |
8 070 Kč | |
| 41 | 79230232000 OIL SCRAPER RING |
1 306 Kč | |
| 42 | 77230030000 COMPRESSIONRING 350 |
977 Kč | |
| 98 | 00050000220 PISTON KIT GR.I 350 SX-F 13-15 |
8 632 Kč | |
| 98 | 00050000221 PISTON KIT GR.II 350 SX-F13-15 |
8 632 Kč | |
| 99 | 00050002311 CRANKSHAFT REP. KIT SX-F 13-15 |
3 172 Kč |
