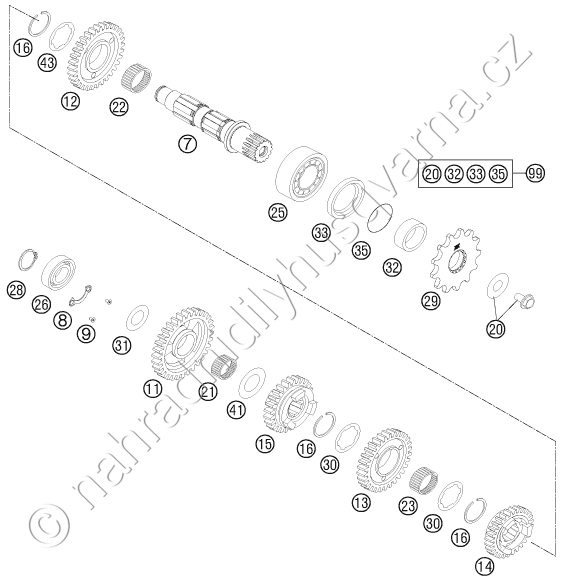

Díly pro TRANSMISSION II - COUNTERSHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 7 | 77233010100 OUTPUT SHAFT |
2 009 Kč | |
| 8 | 78033132000 TAB WASHER BEARING COUNT.SHAFT |
84 Kč | |
| 9 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 11 | 54833011200 IDLER GEAR 1 ST. |
1 682 Kč | |
| 12 | 54833012300 IDLER GEAR 2 ND. |
1 682 Kč | |
| 13 | 54833013000 IDLER GEAR 3RD G. 24-T \'\'3S24\'\' |
1 682 Kč | |
| 14 | 54833014000 SLIDING GEAR 4TH G.24-T \'\'4S24\'\' |
1 682 Kč | |
| 15 | 54833015100 SLIDING GEAR 5.G-21Z |
1 682 Kč | |
| 16 | 77033022000 AXIAL-CIRCLIP 25X1,65 |
82 Kč | |
| 20 | 59033034044 SCREW 10.9+SPRING WASHER |
94 Kč | |
| 21 | 0405202413 NEEDLE BEAR. K20X24X13 |
374 Kč | |
| 22 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. |
103 Kč | |
| 23 | 0405222613 NEEDLE BEAR. K 22X26X13 TN |
132 Kč | |
| 25 | 49030023000 CYLINDRICAL ROLLER BEARING NJ205 |
1 243 Kč | |
| 26 | 0625062035 BALL BEARING 6203 JR2 C3 |
215 Kč | |
| 28 | 0471170015 CIRCLIP DIN 0471-17X1, 5 |
21 Kč | |
| 29 | 79233029013 SPROCKET 13T |
360 Kč | |
| 29 | 79233029014 SPROCKET 14T |
360 Kč | |
| 30 | 59033030000 STOP DISC 25,2X32X1,5 |
58 Kč | |
| 31 | 56033030000 STOP DISC 17,2X30X1 |
158 Kč | |
| 32 | 54633014100 SPACER BUSHING 12MM |
459 Kč | |
| 33 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR |
65 Kč | |
| 35 | 0770020220 O-RING 25,12X1,78 NBR70 |
17 Kč | |
| 41 | 59033080000 SHIM 20X32X1 |
41 Kč | |
| 43 | 50333043000 STOP DISC 25,2X32X1 |
73 Kč | |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE |
538 Kč |
