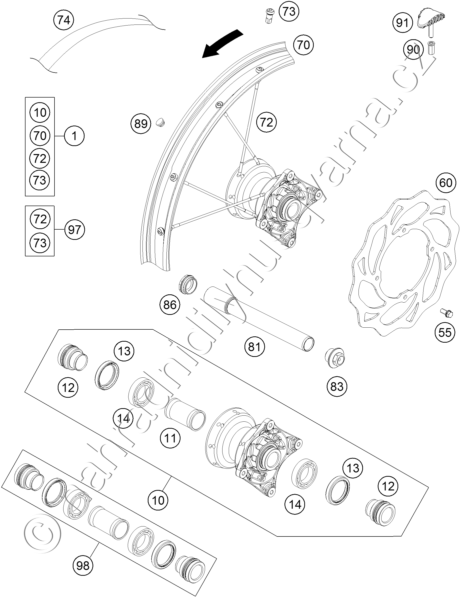

Díly pro FRONT WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 2350900134430 FRONT WHEEL CPL. 17 |
16 900 Kč | |
| 10 | 70009010044 FRONT WHEEL HUB CPL. 12 |
7 198 Kč | |
| 11 | 70009011000 BEAR.SPACER TUBE FRONT D22MM |
312 Kč | |
| 12 | 70009012000 SPACER BUSHING D=22MM |
462 Kč | |
| 13 | 0760324271 SHAFT SEAL RING 32X42X7 BSL |
65 Kč | |
| 14 | 0625069050 BALL BEARING 6905 J1LLUC3 |
645 Kč | |
| 55 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 60 | 70009060000 BRAKE DISC FRONT |
2 909 Kč | |
| 70 | 2350907030030 RIM FRONT 19X1,60 BLACK |
4 312 Kč | |
| 72 | 47109071206 SPOKE M4,5X206-19\'\' |
60 Kč | |
| 73 | 77109072000 SPOKE NIPPLE M4,5 AL 11 |
52 Kč | |
| 74 | 47009073100 RIM BAND 85 SX 19\'\' 2003 |
95 Kč | |
| 81 | 70009081033 FRONT AXLE CPL. \'12 |
1 375 Kč | |
| 83 | 70009082000 AXLESCREW M20X1.5; SW17 |
201 Kč | |
| 86 | 70009081050 PLUG BUSHING SW17 \'12 |
164 Kč | |
| 89 | 55003135000 PLUG FOR RIM |
29 Kč | |
| 90 | 77110090050 NUT FOR WHEEL HOLDER |
33 Kč | |
| 91 | 45110090000 RIM LOCK CPL. 2004 |
627 Kč | |
| 97 | 00050000972 SPOKE KIT FRONT 85 TC 19\'\' |
2 532 Kč | |
| 98 | 70009015000 FRONT WHEEL REP. KIT |
1 865 Kč |
