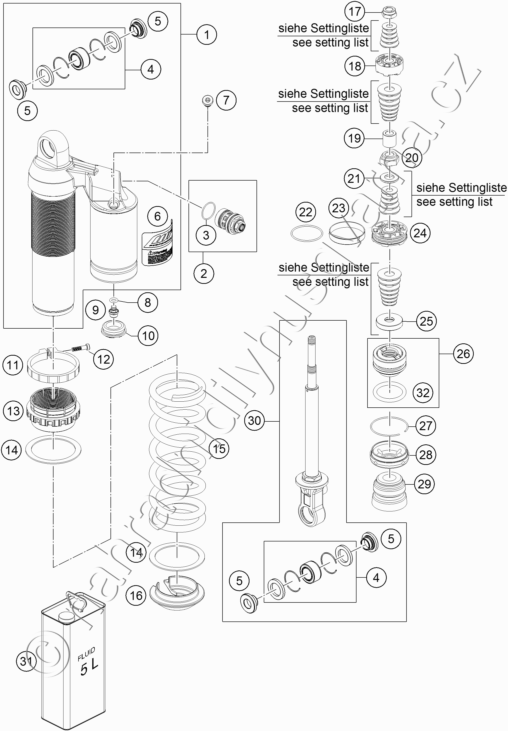

Díly pro SHOCK ABSORBER DISASSEMBLED
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 46181019S2 MONOSHOCK CASE CPL. |
5 939 Kč | |
| 2 | 50180213S12 DCC-COMPR.DAMP.CONTROL CPL. 09 |
3 726 Kč | |
| 3 | 50180218 O-RING 25X1,5 VITON |
66 Kč | |
| 4 | R12012 REP. KIT BEAR./SEAL UP. 07 |
1 352 Kč | |
| 5 | 46180007 ADAPTOR BUSH KGW 12X24 |
191 Kč | |
| 6 | 52000087 STICKER WP MONOSHOCK |
288 Kč | |
| 7 | 50180095 BLEED PLUG R 1/8 |
95 Kč | |
| 8 | 46810893 O-RING NBR 5,28X1,78 |
29 Kč | |
| 9 | 36120151S PLUG SCREW M5X6 CPL. |
161 Kč | |
| 10 | 46811208 RUBBER CAP \'\'DO NOT OPEN\'\' |
57 Kč | |
| 11 | 46181014 TENSIONING RING D64 H10 |
270 Kč | |
| 12 | 0912050203 AH SCREW DIN0912-M 5X20 |
36 Kč | |
| 13 | 46181013 ADJUSTING NUT D46 PLASTIC |
203 Kč | |
| 14 | 50180410 INTERM.RING D=58 |
58 Kč | |
| 15 | 91010161S SPRING (59) 215 40 N/MM D=9,5 |
3 382 Kč | |
| 15 | 91010240S SPRING (59) 215 35 N/MM D=9,25 |
3 382 Kč | |
| 15 | 91010271S SPRING (59) 215 30 N/MM |
4 640 Kč | |
| 16 | 46180349 SPRING WASHER H=15 D=28 |
560 Kč | |
| 17 | 46180356 PISTON ROD NUT M10X1 |
236 Kč | |
| 18 | 46180744 PISTON Ă 35,4 PDS 2 |
696 Kč | |
| 19 | 46181025 SANDWICH BUSH 10X17X17 |
219 Kč | |
| 20 | 46810474 PISTON ROD NUT |
158 Kč | |
| 21 | 46811258 RING 12X24X2,5 |
233 Kč | |
| 22 | 46810035 O-RING VITON 37,82X1,78 |
63 Kč | |
| 23 | 46811206 PISTON RING 8X46 |
356 Kč | |
| 24 | 46810560 PISTON 6+6D7 |
1 280 Kč | |
| 25 | 46180337 REBOUND DISC H=4 |
422 Kč | |
| 26 | 46180669S ADAPTOR CPL. D=46 H=28 07 |
1 870 Kč | |
| 27 | 46810010 CIRCLIP 49X1,5 |
39 Kč | |
| 28 | 46180338 CAP D=46 H=9,5 |
728 Kč | |
| 29 | 50180276 BUMP RUBBER WP60 D=18-26 |
392 Kč | |
| 30 | 46180520S5 MONOSHOCK LOWER PART |
4 693 Kč | |
| 31 | 50180751S1 SHOCK ABSORBER FLUID 5 LT |
2 803 Kč | |
| 32 | 14460004 |
Na dotaz | 1 |
